Orange Pi3 LTS

Model NO.: Orange Pi3 LTS

Quantity:

Product Description

Processor: Allwinner H6, Cortex-A53 (six-core) 64-bit high-performance processor with a maximum frequency of 18GHz
RAM:2GB LPDDR3 (optional 4GB)
Storage: 8GB EMMC flash memory (optional 16GB/32GB/64GB), TF card expansion (maximunsupport 128GB)
Network: Gigabit Ethernet, WiFi (802.11b/g/n/ac) and Bluetooth 4.1
Video: HDMl output (up to 4k@60Hz), CVBS output
Audio: HDMI output, 3.5mm audio interfaceUSB: 1 USB 3.0 interface, 1 USB 2.0 OTG interface, 2 USB 2.0 host interfaces
Expansion interface: 40-pin GPlO expansion interface, standard CSl interface, standard DSiinterface
Other interfaces: IR receiver, power switch, power and activity indicators
Power supply: DC 5V/3A
Dimensions:90x64mm

Send Inquiry

Message Content

Phone

Company Name

Related Products

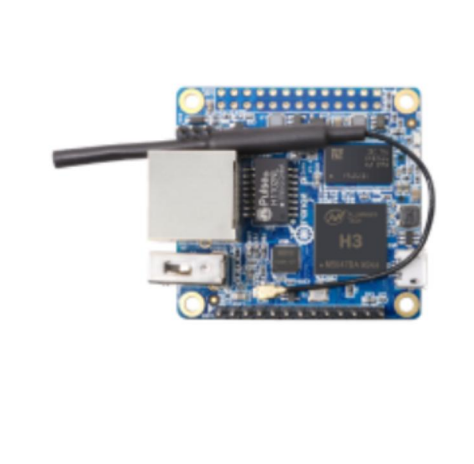

Orange Pi Zero
