Description

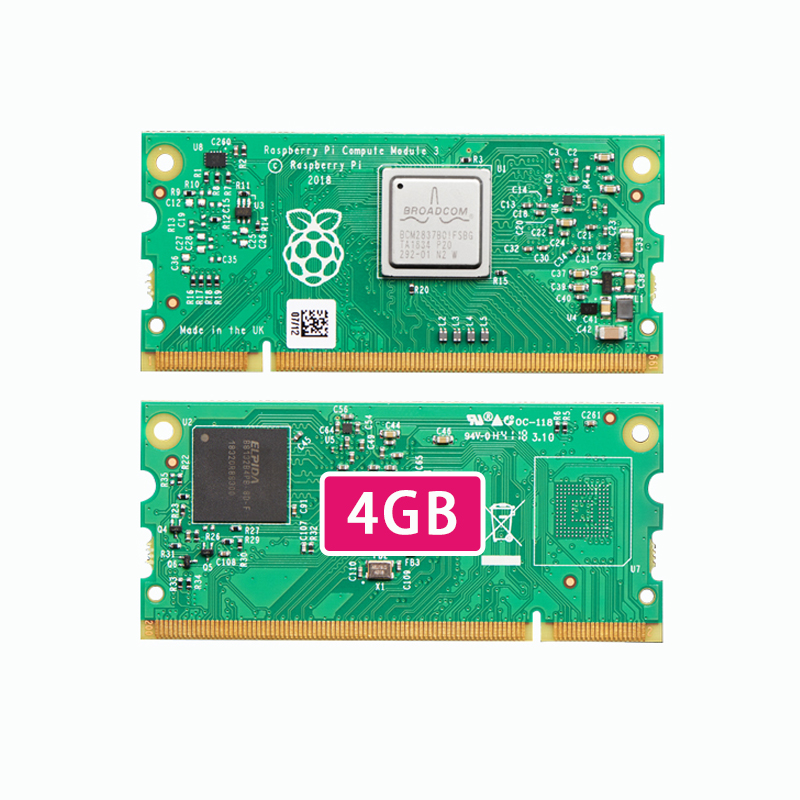

The Compute Module is a Raspberry Pi in a more flexible form factor, intended for industrial application. CM3+ (Compute Module 3+) is the Raspberry Pi 3 B+-based revision of the original Compute Module. The big update to the CM3+ compared to the CM3 series is more eMMC Flash memory and the new heat spreader on the main processor which will let it run at full speed much faster without overheating.Raspberry Pi Compute Module 3+ Specifications
- Broadcom BCM2837B0
- Cortex-A53 (ARMv8) 64-bit SoC @ 1.2GHz
- 1GB RAM
- eMMC Flash
- 200PIN SODIMM connector (35U hard gold plating I/O pins)
- 48 x GPIO
- 2 x I2C
- 2 x SPI
- 2 x UART
- 2 x SD/SDIO (1x SD has been used for eMMC Flash on non-Lite variants)
- 1 x HDMI 1.3a
- 1 x USB2 HOST/OTG
- 1 x DPI (parallel RGB display)
- 1 x NAND(SMI)
- 1 x 4-lane CSI Camera Interface (up to 1Gbps per lane)
- 1 x 2-lane CSI Camera Interface (up to 1Gbps per lane)
- 1 x 4-lane DSI Display Interface (up to 1Gbps per lane)
- 1 x 2-lane DSI Display Interface (up to 1Gbps per lane)
- Compared to CM1, the CM3+ supports more OS, like Windows 10 (the free IOT-specific version from Microsoft)
Send Inquiry
Related Products
Model NO. RP03

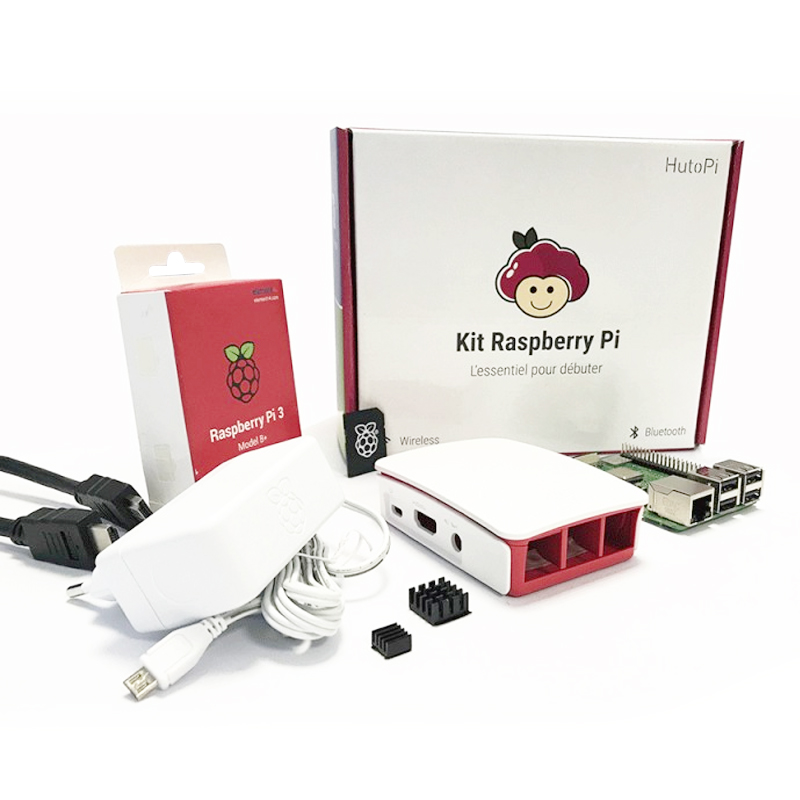

Model NO. raspberry pi 3 model b plus kit
