Description

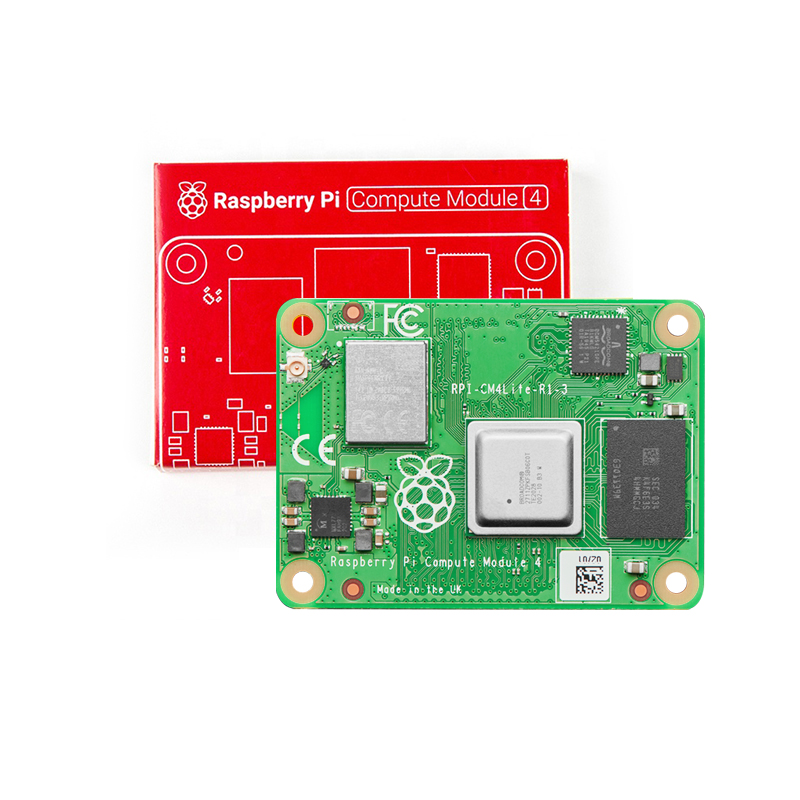

The Raspberry Pi Compute Module 4 is based on the Raspberry Pi 4 Model B, but in a smaller form factor - perfect for embedding into products or projects without the bulk of a classic Raspberry pi. You get all the computational power of Raspberry Pi 4 in a compact form factor for deeply embedded applications. The CM4 incorporates the same quad-core ARM Cortex-A72 processor, dual video output, gigabit Ethernet, UART, I2C, SPI, I2S and a few PWM for good measure.Raspberry Pi Compute Module 4 Specifications
- 1.5GHz quad-core 64-bit ARM Cortex-A72 CPU
- VideoCore VI graphics, supporting OpenGL ES 3.x
- 4Kp60 hardware decode of H.265 (HEVC) video
- 1080p60 hardware decode, and 1080p30 hardware encode of H.264 (AVC) video
- Dual HDMI interfaces, at resolutions up to 4K
- Single-lane PCI Express 2.0 interface
- Dual MIPI DSI display, and dual MIPI CSI-2 camera interfaces
- 1GB, 2GB, 4GB or 8GB LPDDR4-3200 SDRAM
- Optional 8GB, 16GB or 32GB eMMC Flash storage
- Optional 2.4GHz and 5GHz IEEE 802.11b/g/n/ac wireless LAN and Bluetooth 5.0
- Gigabit Ethernet PHY with IEEE 1588 support
- 28 GPIO pins, with up to 6 × UART, 6 × I2C, and 5 × SPI
Send Inquiry
Related Products
Model NO. RP03
Model NO. raspberry pi 3 model b plus kit

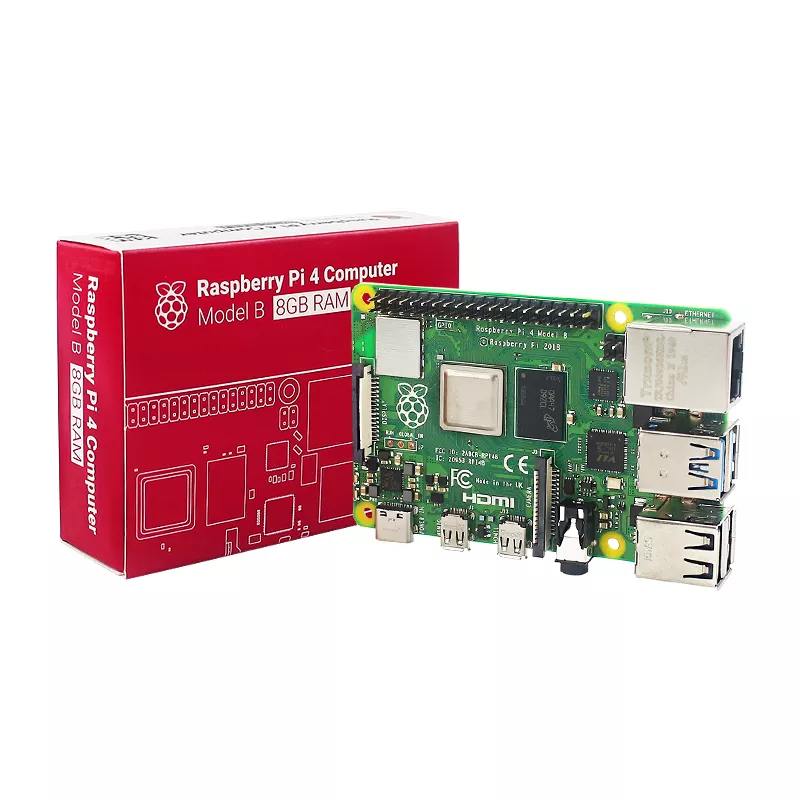

Model NO. Raspberry Pi 4 Model B 8GB
