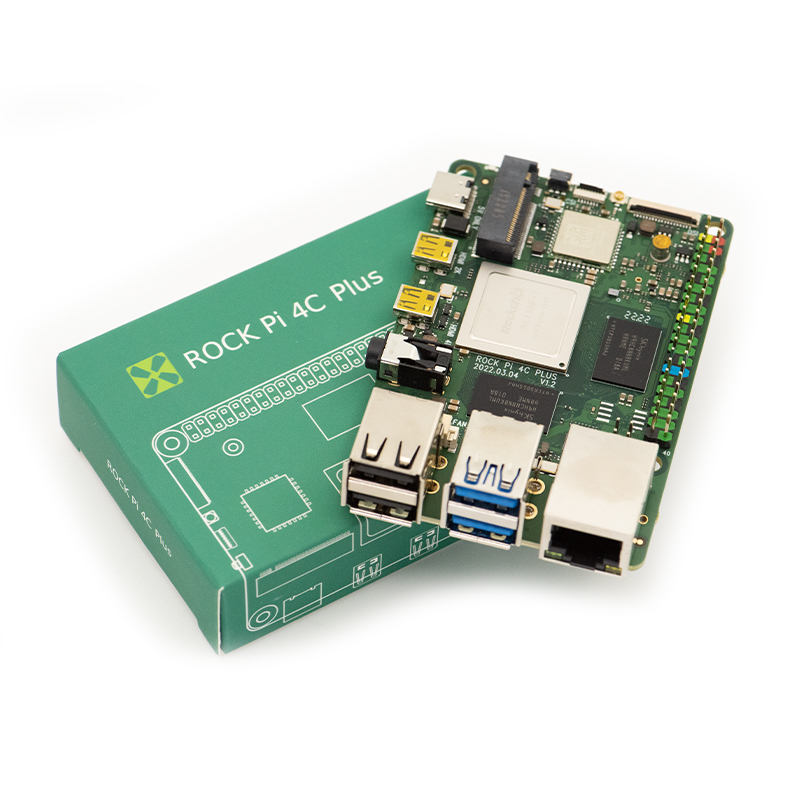

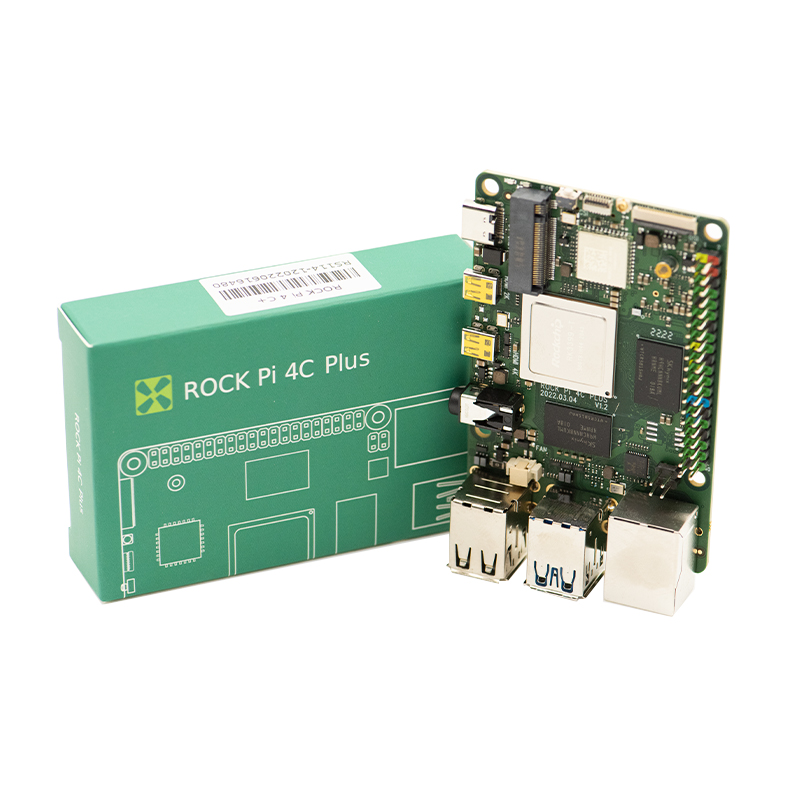

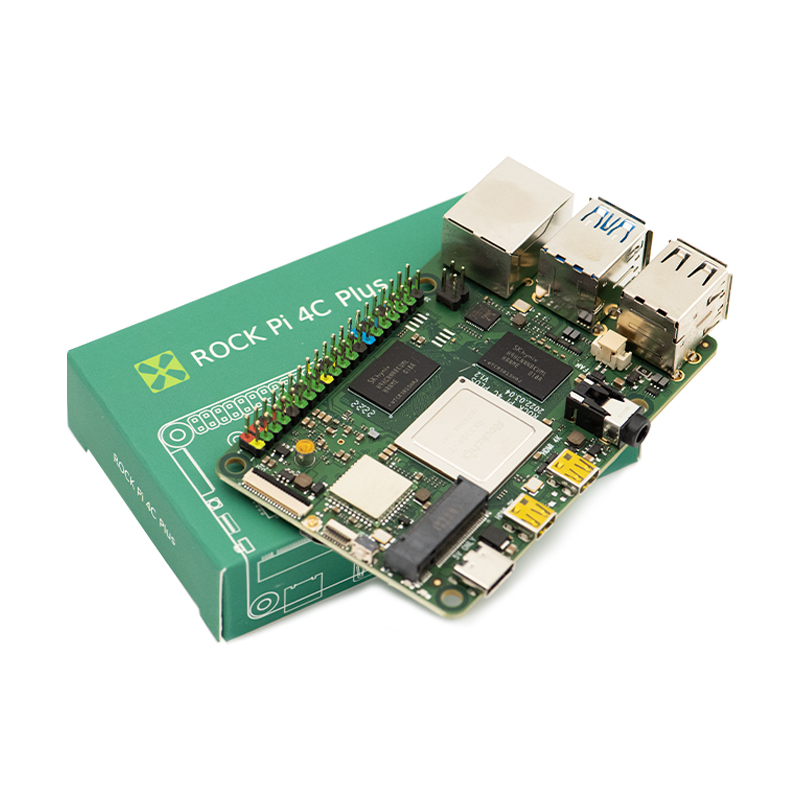

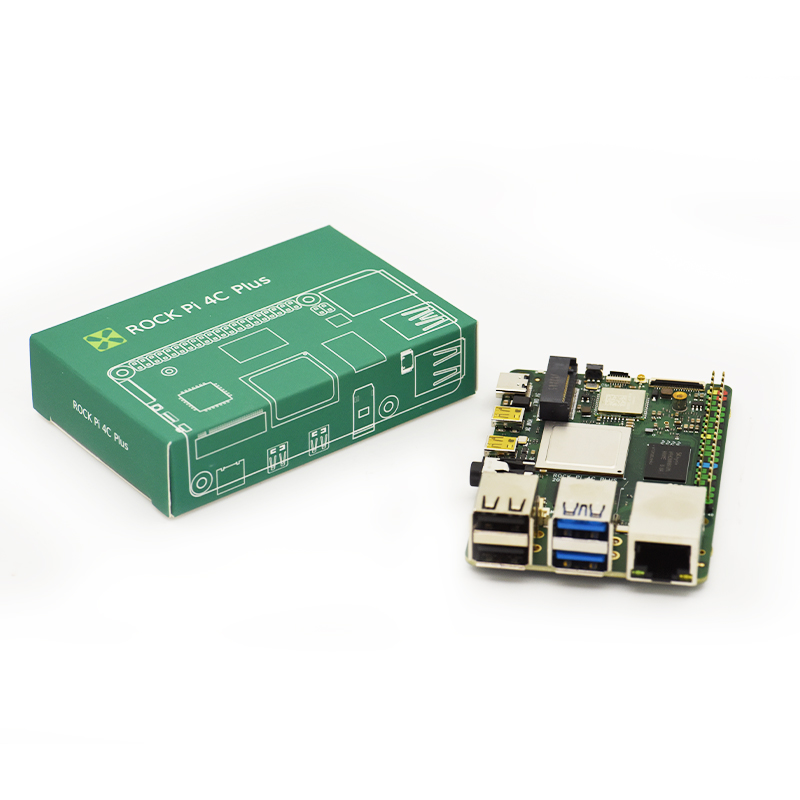

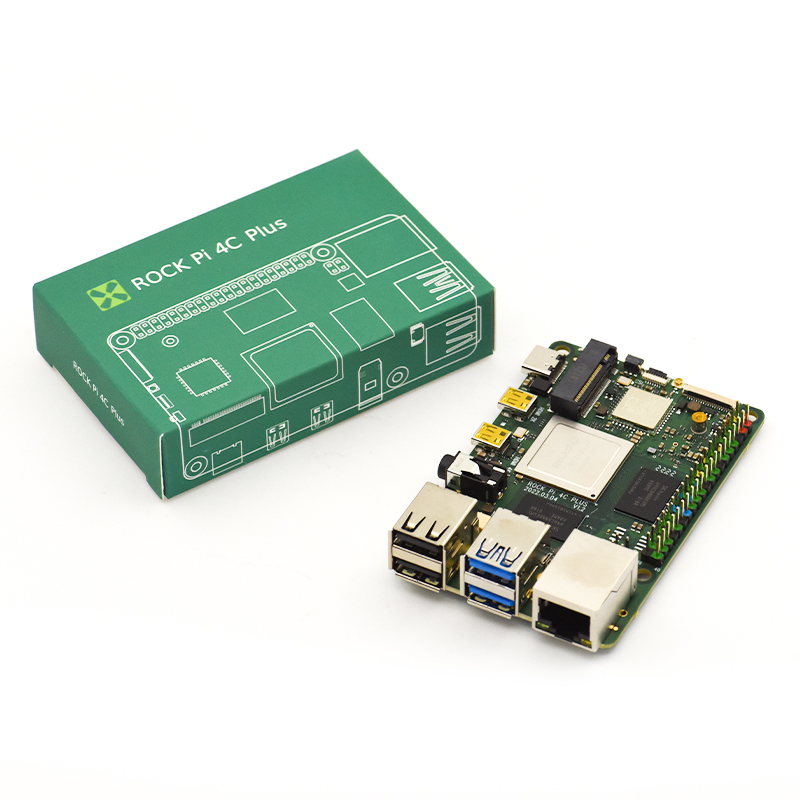

ROCK PI 4 Model C PLUS

Rockchip RK3399T 64bit hexa core based SBC

With a small form-factor, dual screen, outstanding design and performance it is the perfect choice for your personal or business oriented projects.

Rock Pi 4C+ 4GB product details

RK3399T 64bit hexa core processor

Dual Cortex-A72, frequency 1.5GHz (oc to 2GHz) with quad Cortex-A53, 1.4Ghz (os to 1.6GHz) with separate NEON coprocessor

GPU

Mali T860MP4 gpu, supports OpenGL ES 1.1 /2.0 /3.0 /3.1 /3.2, Vulkan 1.0, Open CL 1.1 1.2, DX11.

Memory LPDDR4

64bit dual channel LPDDR4@3200Mb/s, 4GB

SPI Flash (optional)

32Mb SPI flash can be mounted - NVMe boot or e.g. Network boot via SPI supported*

*will reduce available DSI lanes by 2

Wifi/BT Antenna (for Wifi model)

Wifi/BT with external antenna support (uFL)

Storage eMMC module (optional)

Optional industrial level high performance eMMC module, 16G/32G/64G/128G available (click on module bottom side)

Micro SD card

SD card slot supports up to 128GB uSD card

M.2 SSD

M.2 (M) 2230 up to 2T M.2 NVME SSD via PCIe 2.0 x4 interface

Display HDMI

Micro HDMI 2.0 up to 4k@60 (Type D), H.265/VP9 (HEVC) hardware decode

Micro HDMI 2.0 up to 2k@60 (Type D), H.264 hardware decode

Peripherals

Display MIPI DSI

MIPI DSI 4 lanes display via FPC connector

Two of HDMI/HDMI2/MIPI DSI can work at the same time, support mirror or extend mode.

Camera MIPI CSI

MIPI CSI 2 lanes via FPC connector, support up to 8MP camera

Audio

Audio 3.5mm jack with mic with improved mechanics

HD codec that supports up to 24-bit/96kHz audio

Output can drive 32Ohm head phones directly

USB 3.0

USB 3.0 HOST x1

USB 3.0 OTG port x1 (upper one)

default - DEVICE, activate - HOST via serial command GPIO header

USB 2.0

 2x USB HOST ports
