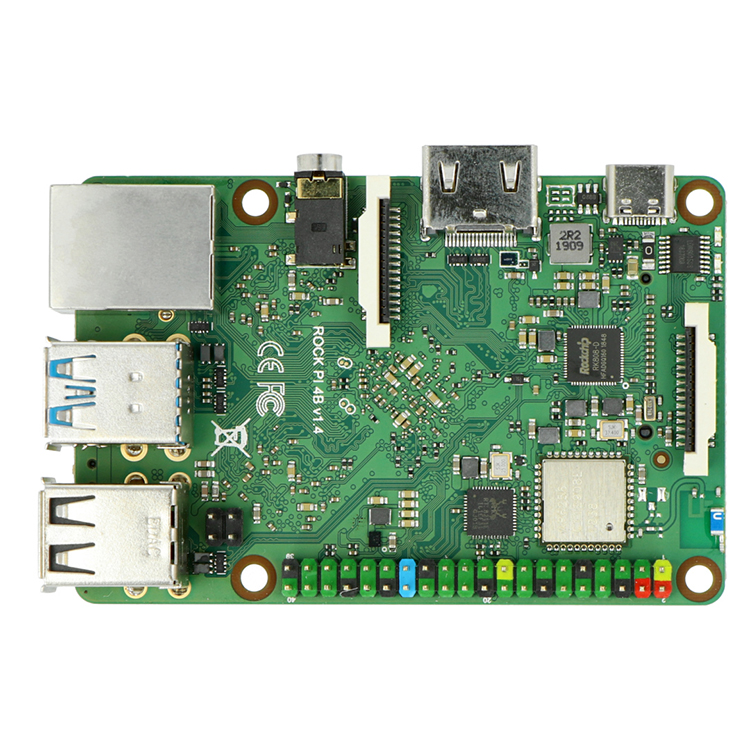

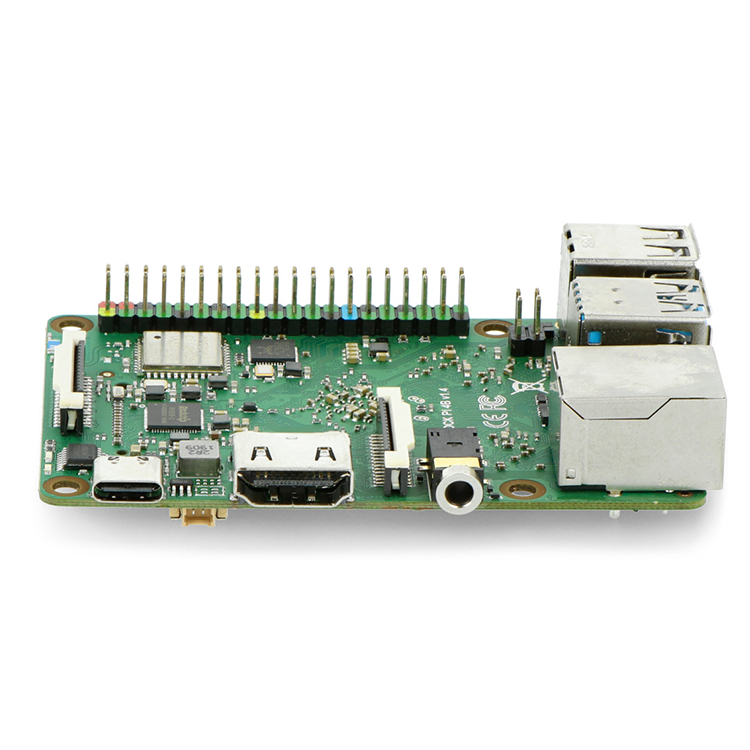

Rock Pi 4 4GB SE

Overview

ROCK Pi 4 has a modern and powerful hexa-core ARM based processor, RK3399 inside, it offers significantly improved performance versus other popular SBC boards. All models are equipped with LPDDR4 3200Mb/s RAM and optional high performance eMMC modules, boost all applications.

* Processeur dual core + Quad core 64bits
* Double affichage via HDMI/MIPI DSI
* 1x SD Card
* x1 HDMI 4Kp60
* 2x USB2 HOST ports
* 1x USB3 HOST port + 1x USB3 OTG port
* 1x port Gigabit Ethernet
* 1x port caméra (MIPI CSI 2 voies)
* x1 port d'affichage (MIPI DSI à 2 voies)
* Port GPIO 40
* eMMC haute vitesse
* module WIFI / Bluetooth 5.0




ROCK Pi 4 features maker friendly expansion options, including a 40-pin GPIO interface that allow for interfacing with a range inputs from buttons, switches, sensors, LEDs, and much more.

ROCK Pi 4 also features a Gbit LAN for network, with dedicated bus and controller, it works without latency under heavy load network applications. On board 802.11 ac wifi offers 2.4G & 5G WLAN connectivity. With Bluetooh 5.0, ROCK Pi 4 benefits improved Bluetooth speed and greater range.

ROCK Pi 4 also features one USB 3.0 host and one USB 3.0 OTG ports, each 5Gbps/s, working independently. The USB 3.0 OTG can work as USB device such as Android ADB or USB gadgets. A hardware switch is provided for OTG mode switch.
