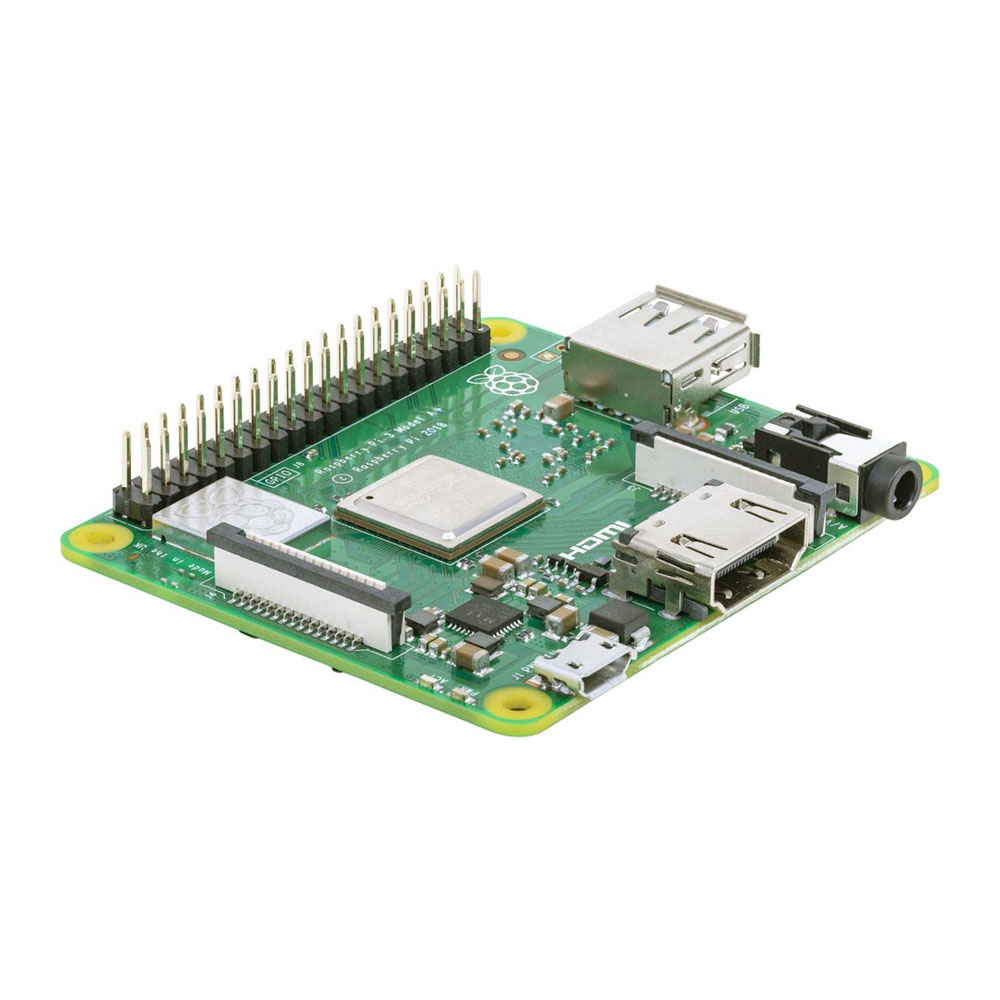

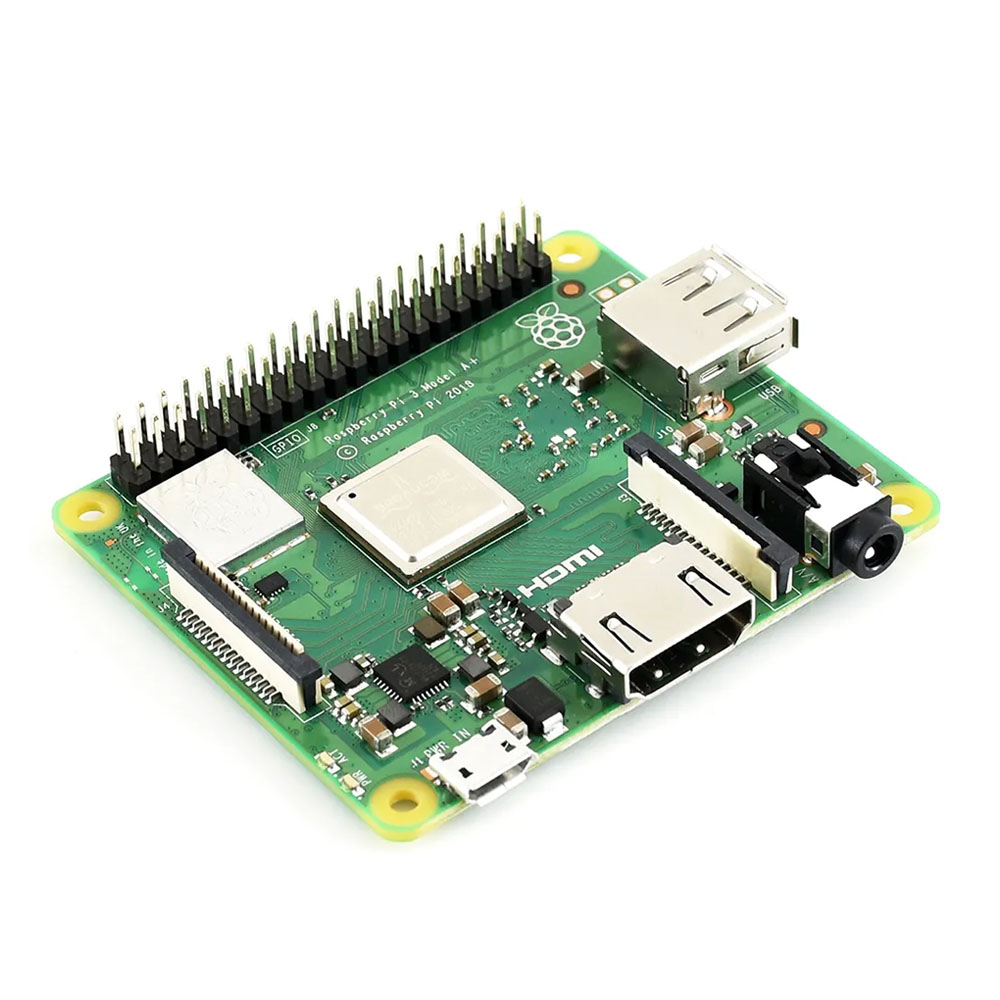

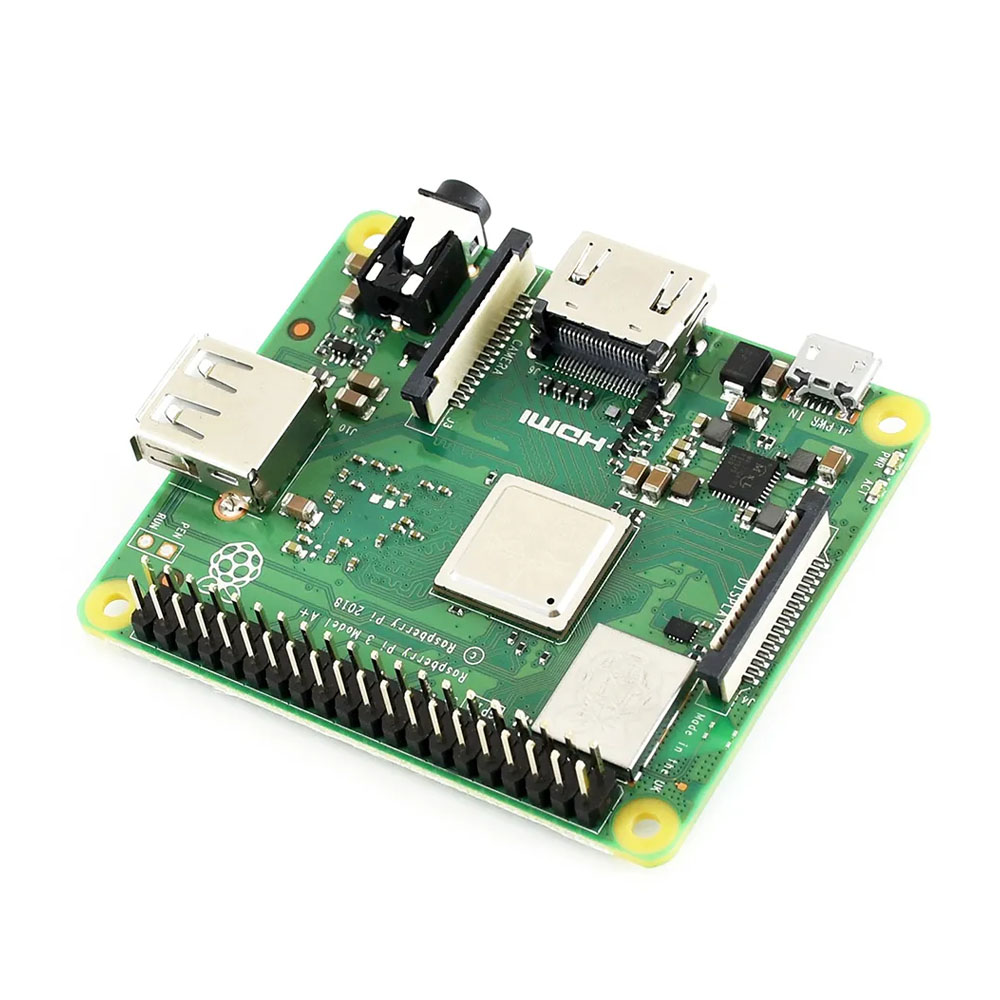

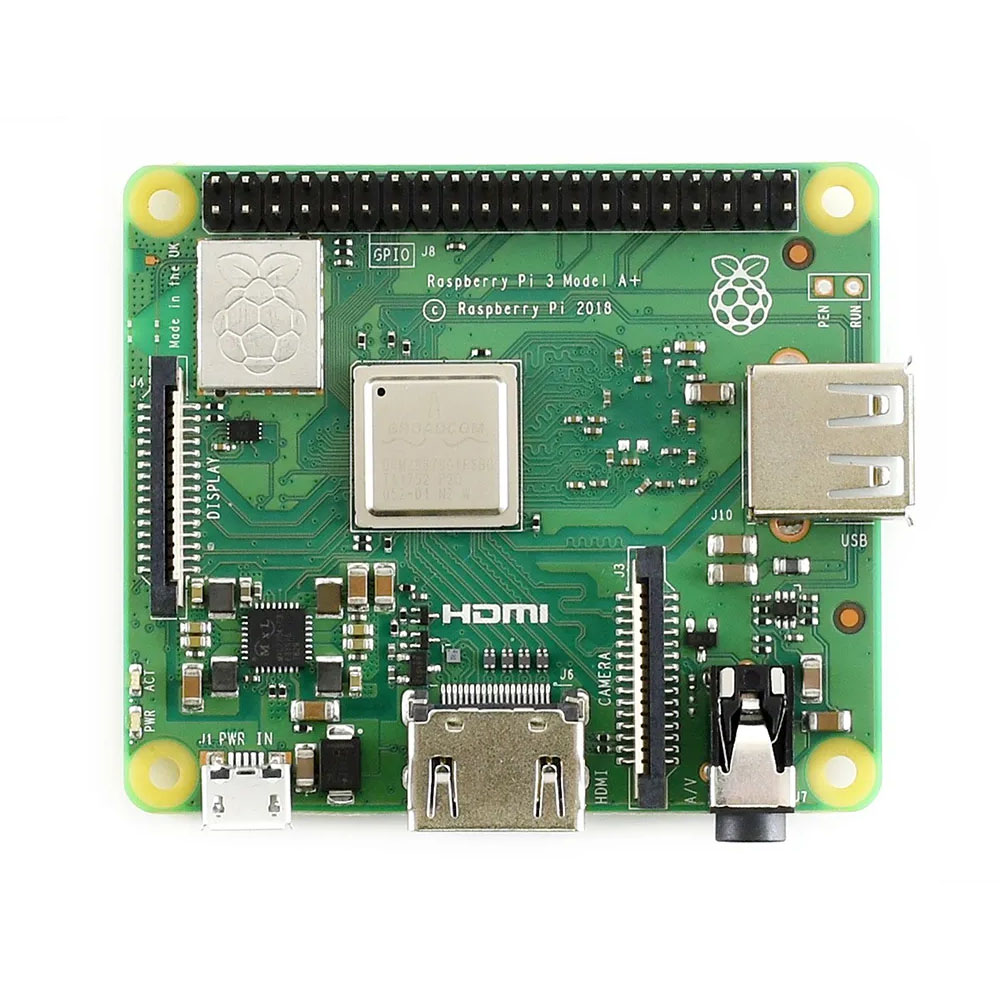

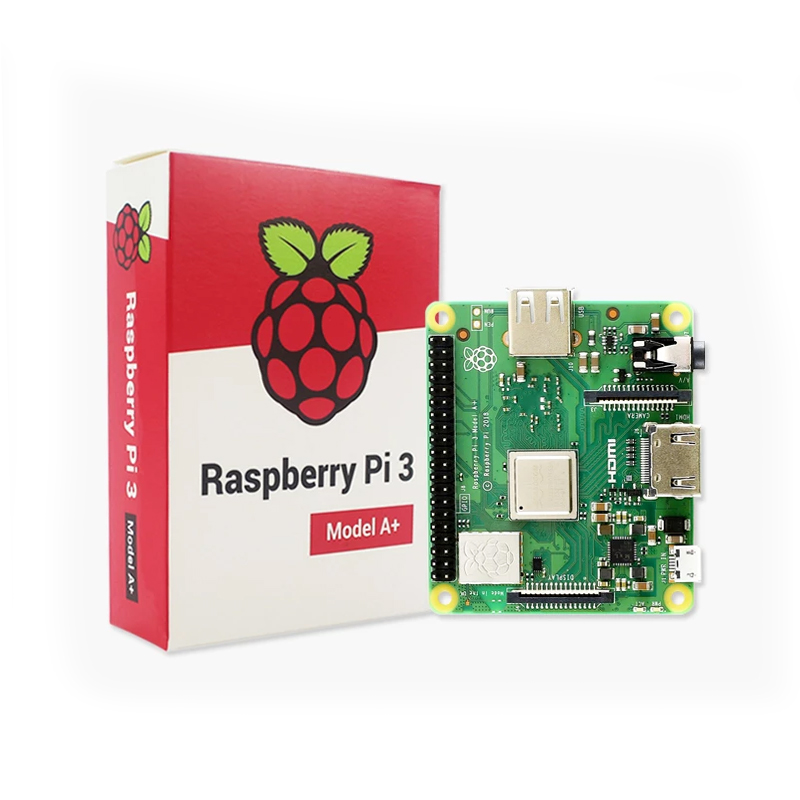

Raspberry Pi 3 Model A+

Model NO.: RPMA03+
Minimum order quantity:: 1

Quantity:

Product Description
Application Description

Raspberry Pi 3 Model A+ incorporates most of the neat enhancements as its big brother Raspberry Pi 3B+, and features:

1.4GHz 64-bit quad-core ARM Cortex-A53 CPU
512MB LPDDR2 SDRAM
Dual-band 802.11ac wireless LAN and Bluetooth 4.2/BLE
Improved USB mass-storage booting
Improved thermal management

Like its big brother, the entire board is certified as a radio module under FCC rules, which in turn will significantly reduce the cost of conformance testing Raspberry Pi–based products.

Specifications

Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz
512MB LPDDR2 SDRAM
2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
No Ethernet port

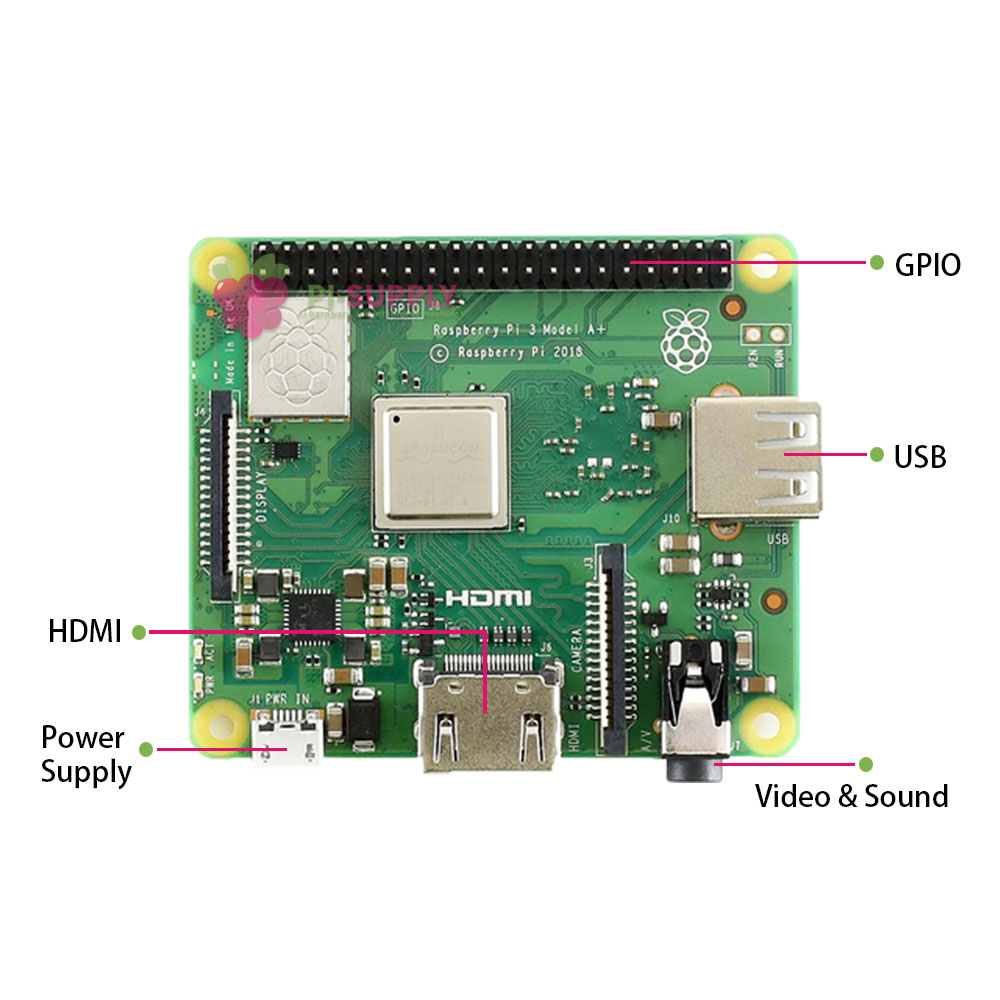

Extended 40-pin GPIO header
Full-size HDMI
Single USB 2.0 port
CSI camera port for connecting a Raspberry Pi Camera Module
DSI display port for connecting a Raspberry Pi Touch Display
4-pole stereo output and composite video port
Micro SD port for loading your operating system and storing data
5V/2.5A DC power input

The Raspberry Pi 3 Model A+ is the latest product in the Raspberry Pi 3 range, weighing in at just 29g. Like the Raspberry Pi 3 Model B+ , it boasts a 64-bit quad core processor running at 1.4 GHz, dual-band 2.4 GHz and 5 GHz wireless LAN, and Bluetooth 4.2/BLE.

The dual-band wireless LAN comes with modular compliance certification, allowing the board to be designed into end products with significantly reduced wireless LAN compliance testing, improving both cost and time to market.

The Raspberry Pi 3 Model A+ has the same mechanical footprint as the older Raspberry Pi 1 Model A+ .
