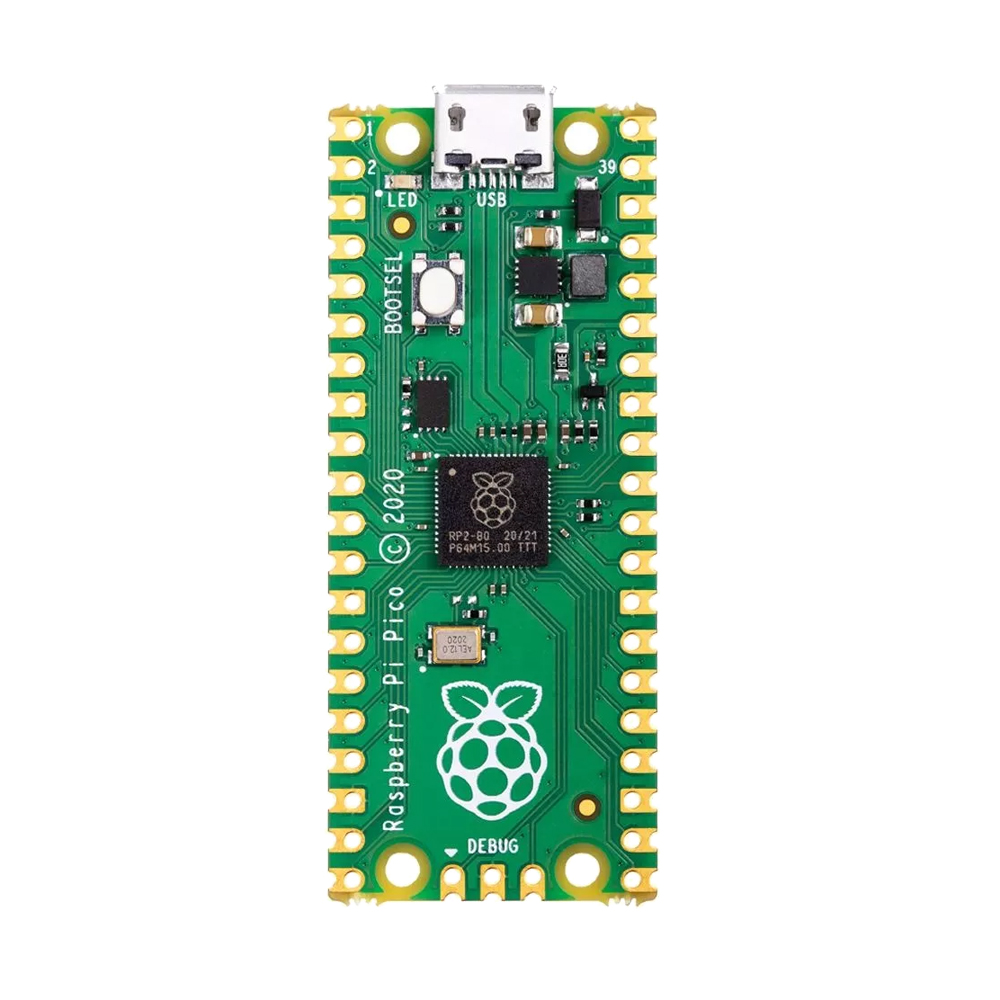

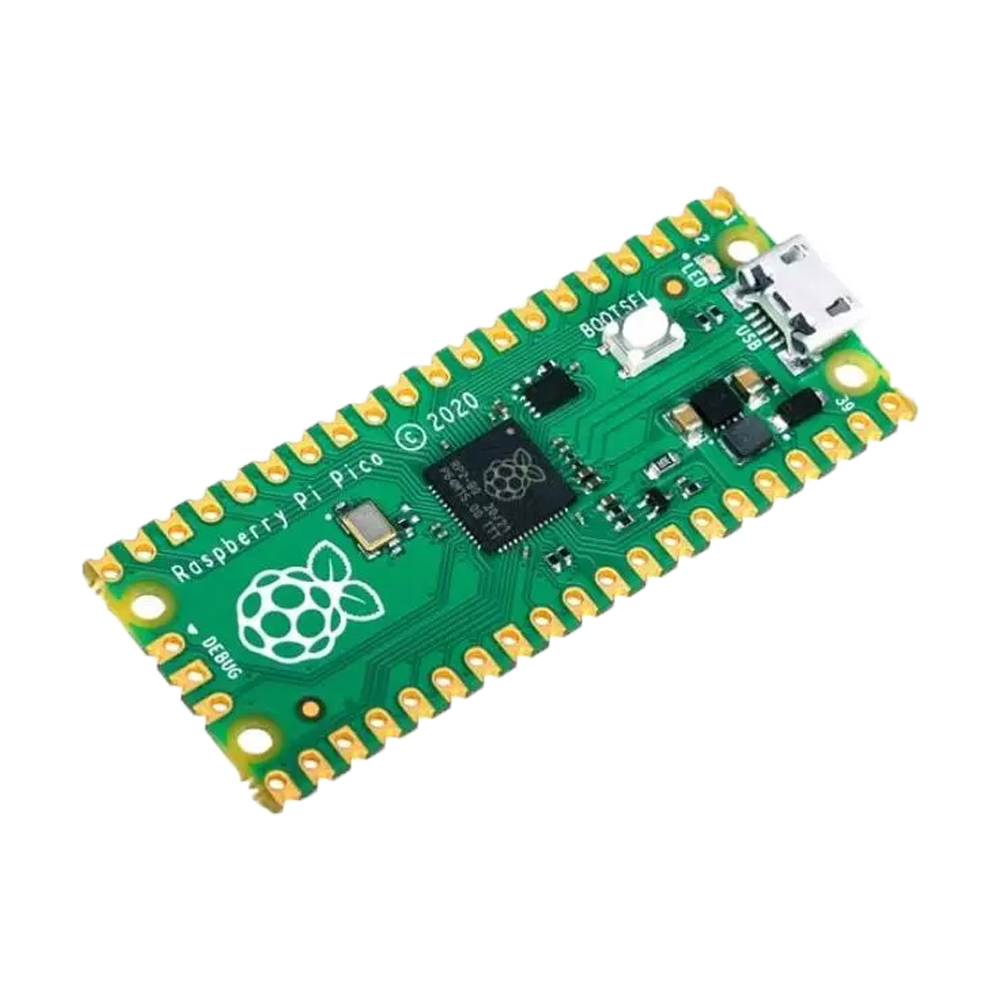

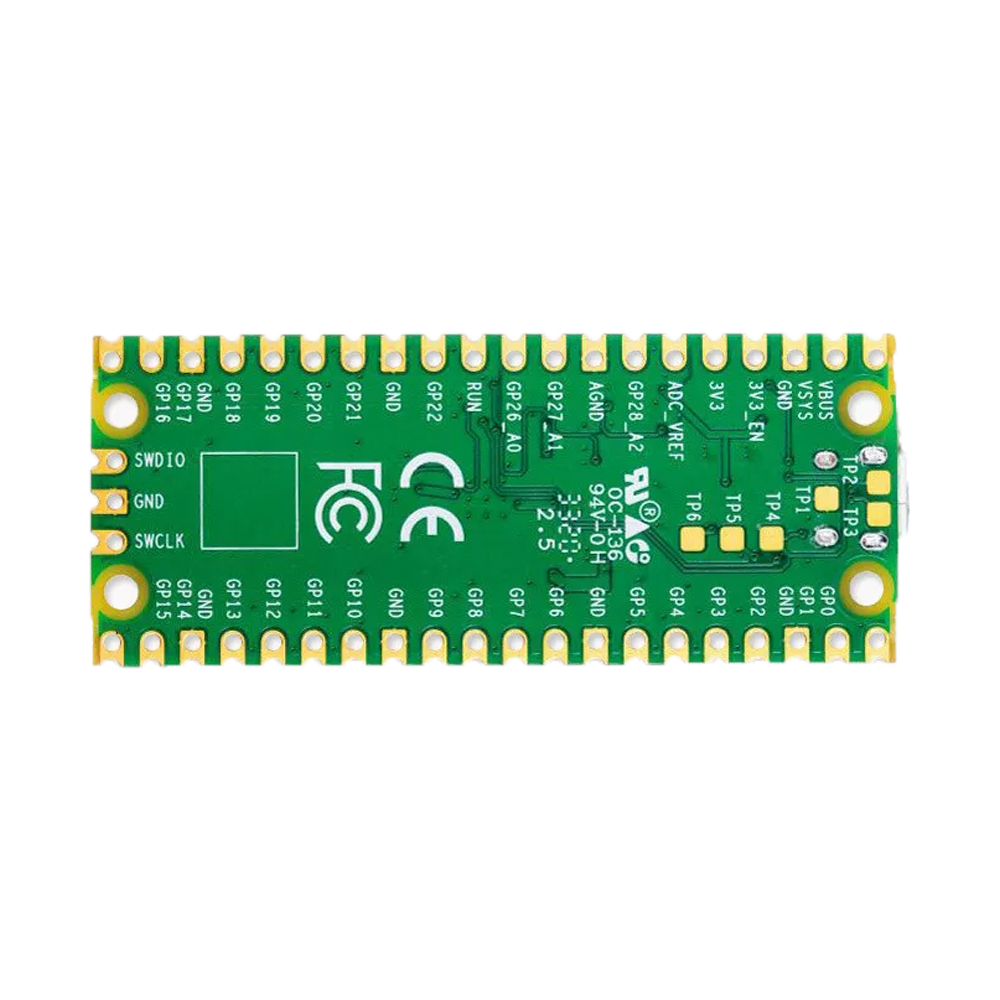

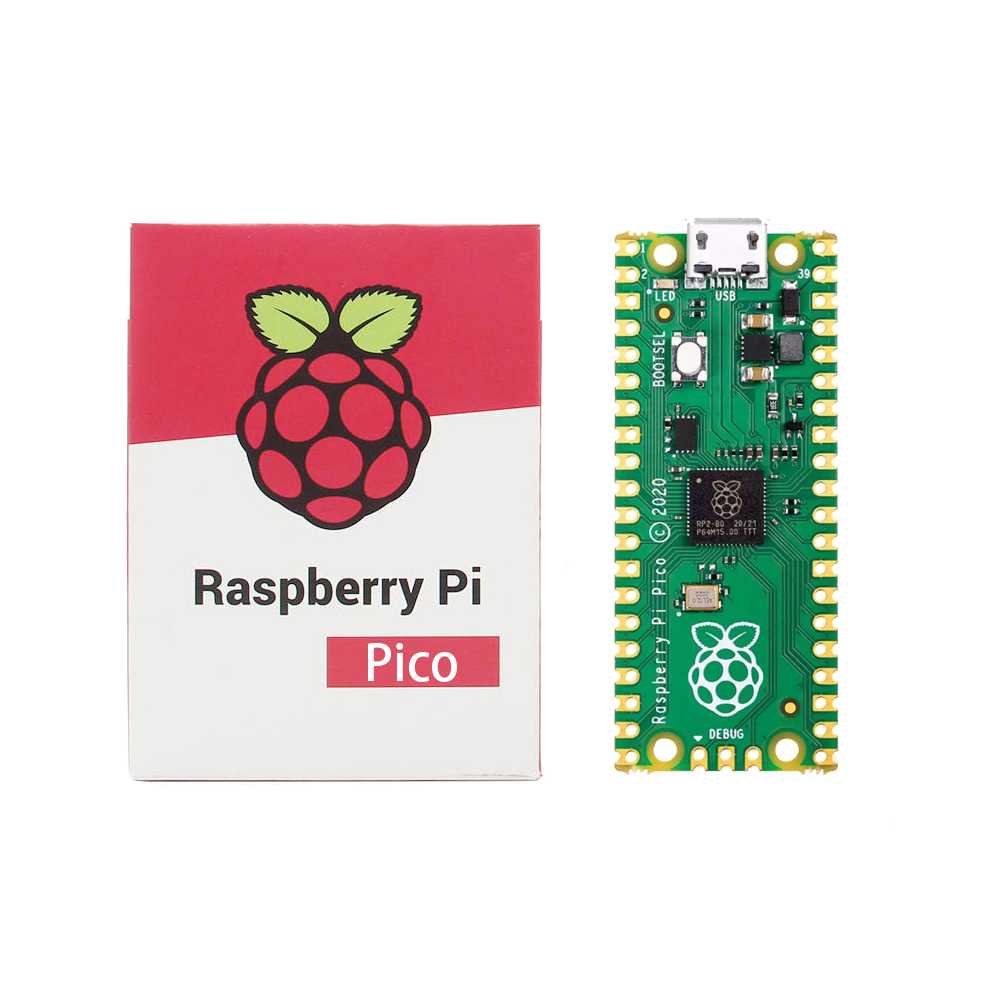

Raspberry Pi Pico

Description

The Raspberry Pi Pico is an entirely new type of microcontroller from Raspberry Pi. Small, cheap and flexible - it’s great for learning to code with MicroPython!

Whether you’re looking to learn about the MicroPython programming language, take your first steps in physical computing or want to build a hardware project, the Raspberry Pi Pico – and its amazing community – will support you every step of the way.


Raspberry Pi Pico Specifications

The main chip on board is the 'RP2040' made by Raspberry Pi (their first in-house microcontroller chip!) and is a dual-core ARM Cortex M0+ processor, with a flexible clock running up to 133MHz.

• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz
• 264kB of SRAM, and 2MB of onboard Flash memory
• Castellated module allows soldering directly to carrier boards (non-header version only)
• USB 1.1 Host and Device support
• Low-power sleep and dormant modes
• Drag & drop programming using mass storage over USB

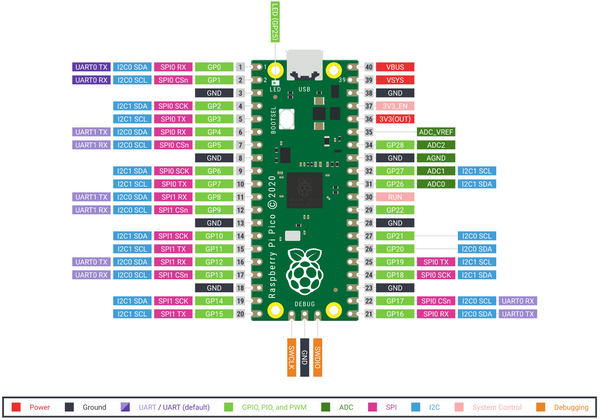

• 26 multi-function GPIO pins
• 2×SPI, 2×I2C, 2×UART, 3×12-bit ADC, 16×controllable PWM channels
• Real-time clock (RTC)
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 8×Programmable IO (PIO) state machines for custom peripheral support
• Dimensions: 51mm x 21mm
