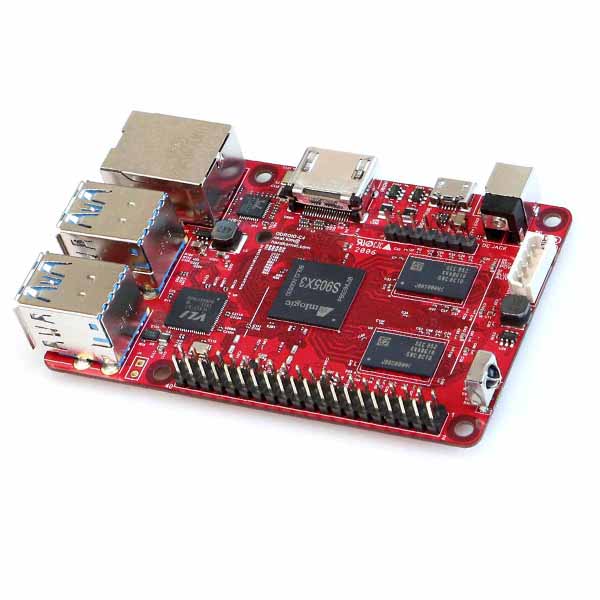

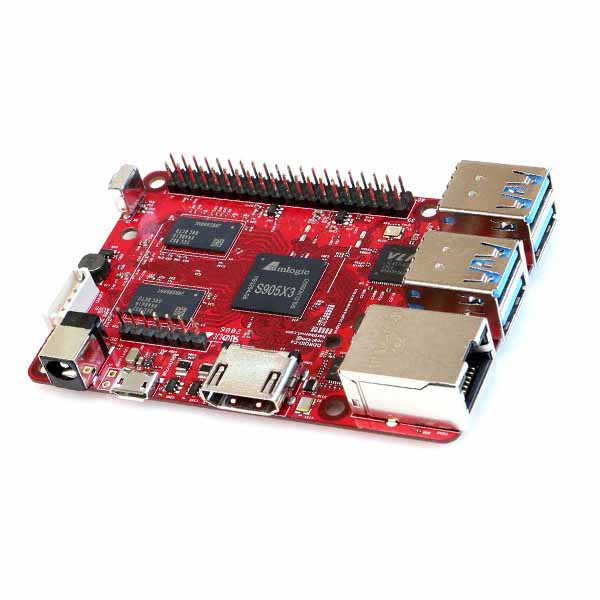

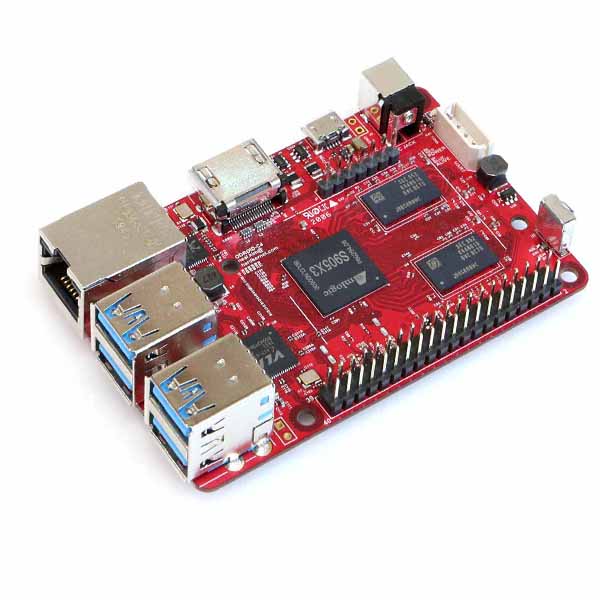

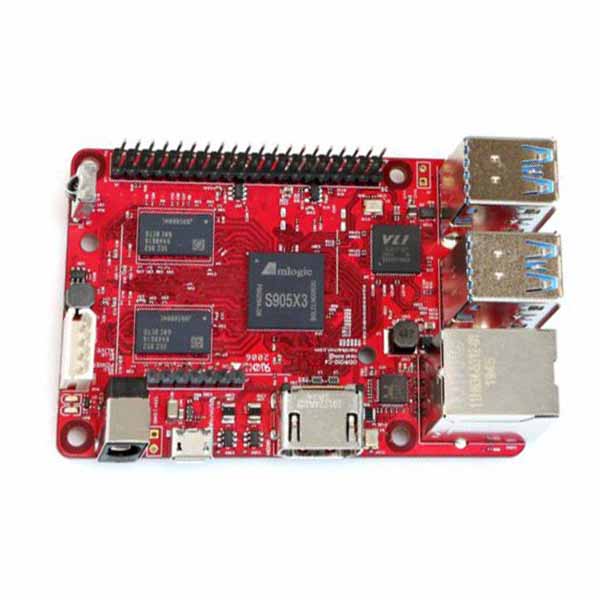

ODROID-C4 is a new generation single board computer that is more energy efficient and faster performing than ODROID-C2 which was introduced over four years ago as the world's first affordable ARM 64bit computer.

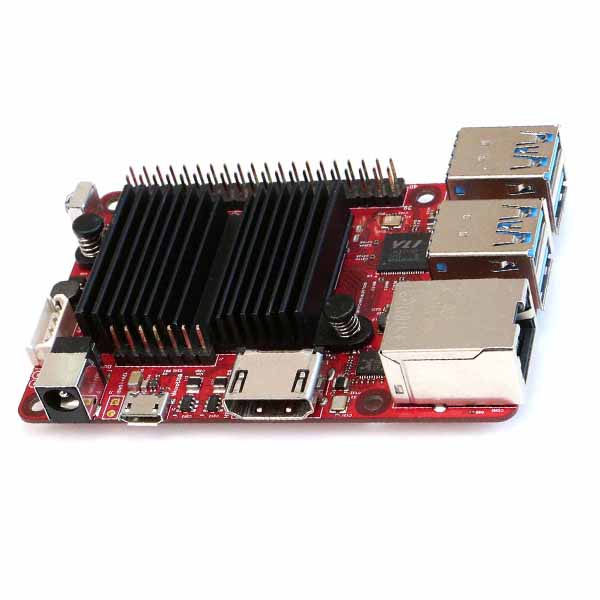

The main CPU of the ODROID-C4 is built with a quad-core Cortex-A55 cluster with a new generation Mali-G31 GPU. The A55 cores run at 2.0Ghz without thermal throttling using the stock heat sink allowing a robust and quiet computer. The CPU multi-core performance is around 40% faster, and the system DRAM performance is 50% faster than the ODROID-C2.
Technical Specifications:
The main CPU of the ODROID-C4 is built with a quad-core Cortex-A55 cluster with a new generation Mali-G31 GPU. The A55 cores run at 2.0Ghz without thermal throttling using the stock heat sink allowing a robust and quiet computer. The CPU multi-core performance is around 40% faster, and the system DRAM performance is 50% faster than the ODROID-C2.
Technical Specifications:

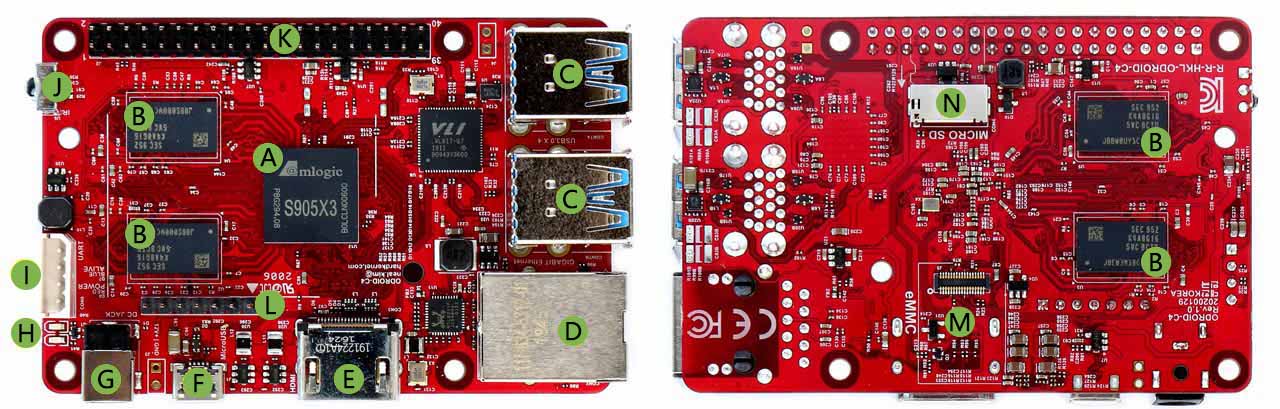

A CPU: Amlogic S905X3 12nm Processor Quad-Core Cortex-A55 (2.016GHz) ARMv8-A architecture with Neon and Crypto extensions
B Memory: DDR4 4GiB with 32-bit bus width 2640 MT/s (PC4-21333 grade)
C 4x USB 3.0 Host ports (shares one single root hub)
D 1 x RJ45 Ethernet port (10/100/1000)
E 1 x HDMI digital output
F 1 x Micro USB 2.0 port (OTG)
G 1 x DC power jack (Outer diameter : 5.5mm,inner diameter : 2.1mm)
H 2 x System LED indicators
I 1 x UART for system console
J 1 x IR receiver
K 40 x GPIO pins
L 7 x GPIO pins
M eMMC connector (8/16/32/64GiB are available)
N Micro SD slot (DS/HS mode up to UHS-I SDR104)
B Memory: DDR4 4GiB with 32-bit bus width 2640 MT/s (PC4-21333 grade)
C 4x USB 3.0 Host ports (shares one single root hub)
D 1 x RJ45 Ethernet port (10/100/1000)
E 1 x HDMI digital output
F 1 x Micro USB 2.0 port (OTG)
G 1 x DC power jack (Outer diameter : 5.5mm,inner diameter : 2.1mm)
H 2 x System LED indicators
I 1 x UART for system console
J 1 x IR receiver
K 40 x GPIO pins
L 7 x GPIO pins
M eMMC connector (8/16/32/64GiB are available)
N Micro SD slot (DS/HS mode up to UHS-I SDR104)
