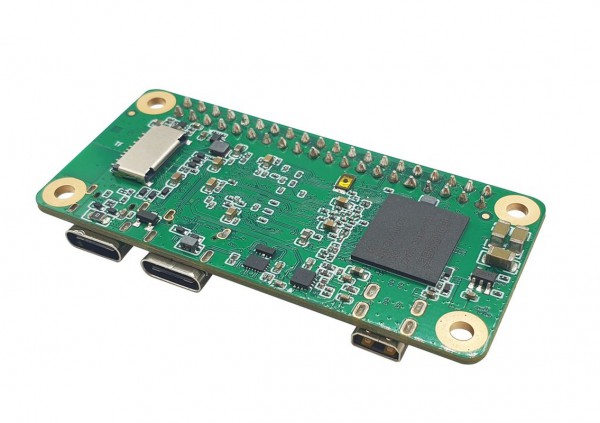

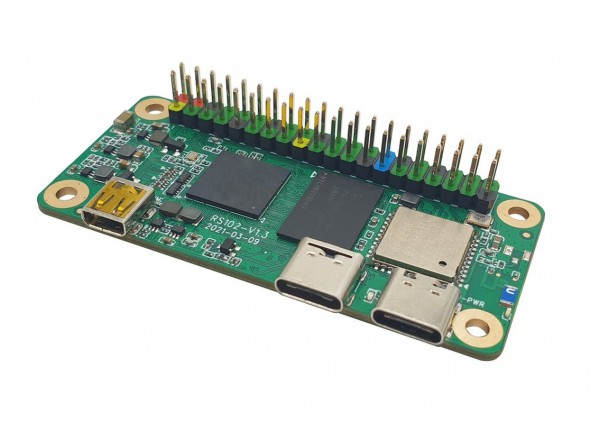

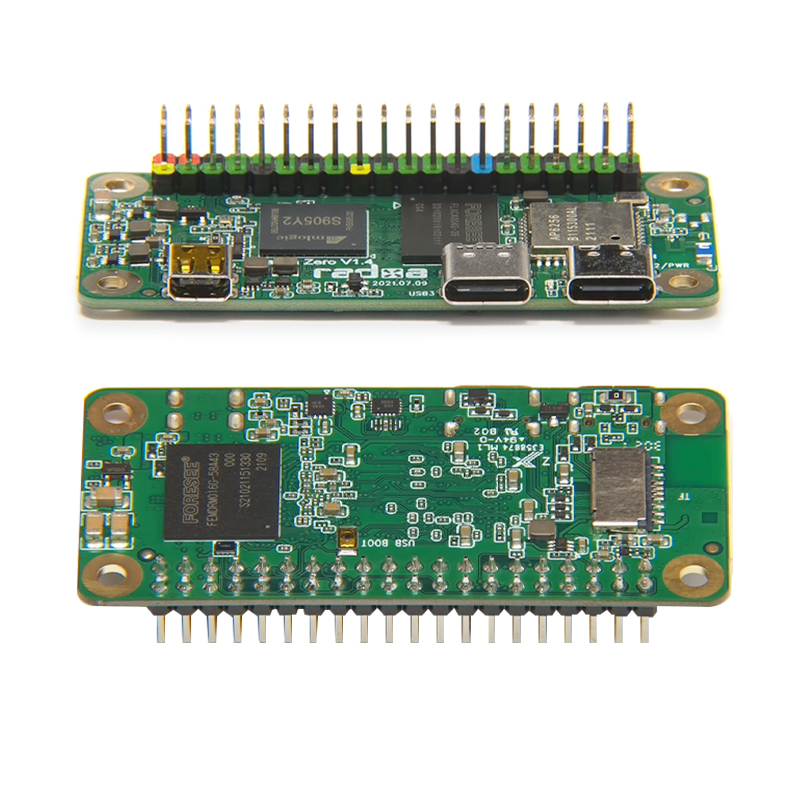

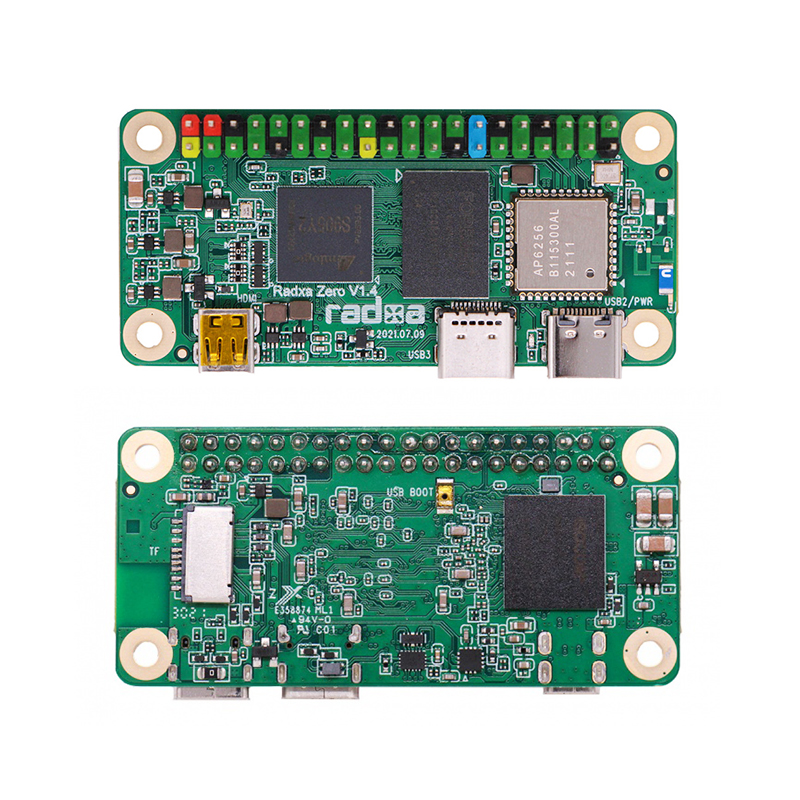

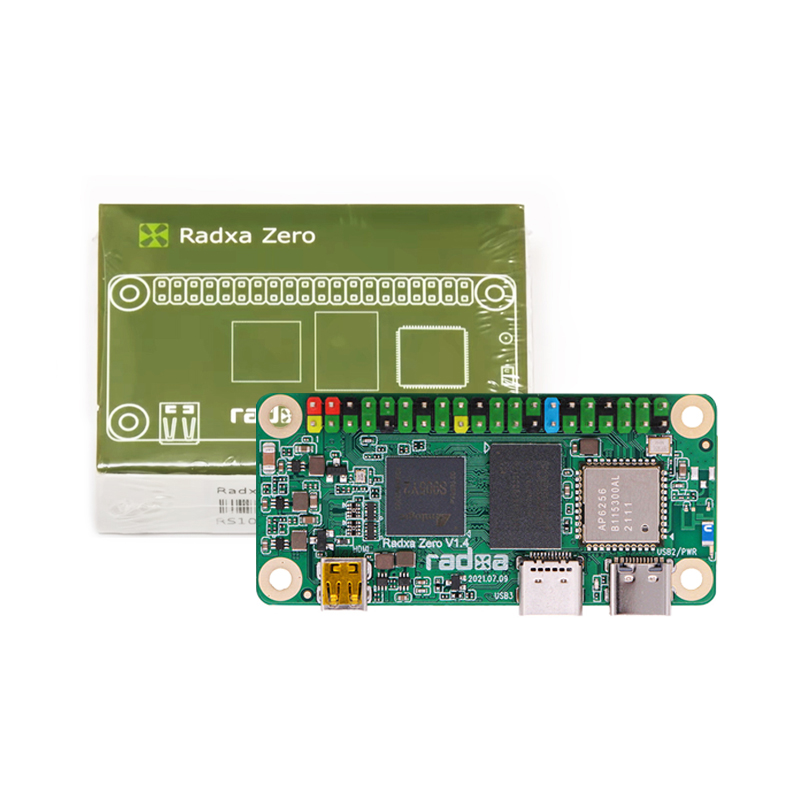

Radxa Zero

Description

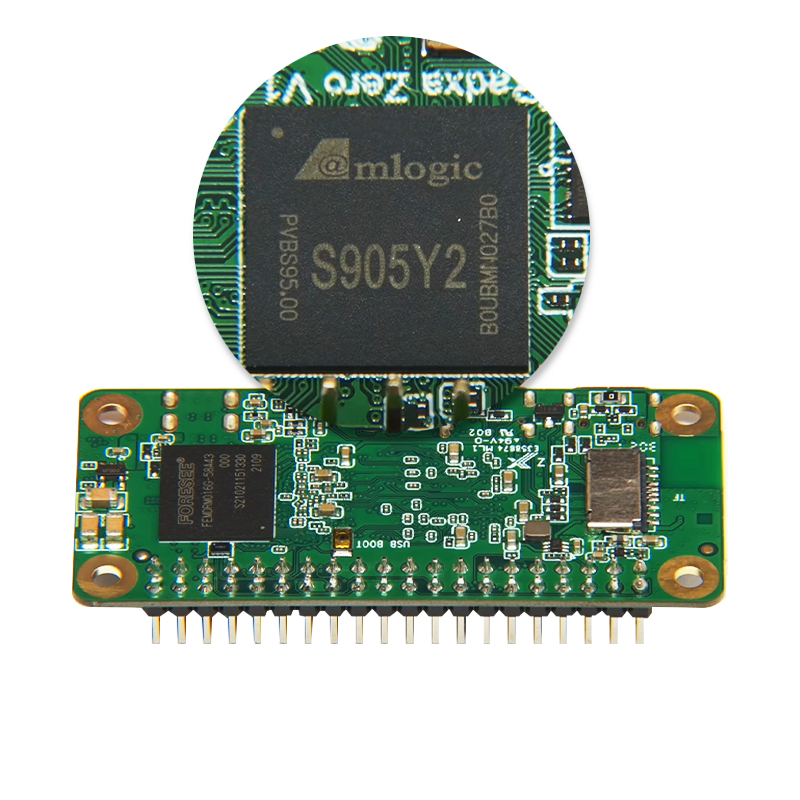

Radxa Zero SBC follows Raspberry Pi Zero W form factor, but thanks to an Amlogic S905Y2 quad-core Cortex-A53 processor clocked at up to 2.0 GHz offers much higher performance, which Radxa says corresponds to about 70% of Raspberry Pi 4 CPU performance.   The tiny Arm Linux board comes with up to 4GB RAM, 16GB eMMC flash, and either AP6212 or AP6256 wireless module.  plus all interfaces from Raspberry Pi Zero W, but with a twist as the mini HDMI port is replaced by a micro HDMI port, and USB-C ports are used instead of micro USB ports.

Radxa Zero preliminary specifications:

• SoC – Amlogic S905Y2 quad-core Cortex-A53 processor @ up to 2.0 GHz with Arm Mali-G31 MP2 GPU

• System Memory – 512MB RAM, 1GB, 2GB, or 4GB LPDDR4

• Storage – MicroSD slot, optional 8GB or 16GB eMMC flash

• Video Output – micro HDMI port up to 4Kp60

• Connectivity

  • Ampak AP6212 module – 802.11b/g/n WiFI 4 up to 72 Mbps plus Bluetooth 4.0 or

  • Ampak AP6256 module – 802.11n/g/n/ac WiFi 5 up to 433 Mbps and Bluetooth 5.0

• USB – 1x USB-C 2.0 OTG port, 1x USB-C 3.0 host port

• Camera – 1x CSI camera connector

• Expansion – Color-coded 40-pin Raspberry Pi compatible header

• Power Supply – 5V via USB-C port

• Dimensions – 65 x 30 x 5mm (same as Raspberry Pi Zero W)
