Model NO.
OLED (B)
Quantity:
0.96inch OLED (B)






Key Parameters

DRIVER CHIP1306
INTERFACE3-wire SPI, 4-wire SPI, I2C
RESOLUTION128*64
DISPLAY SIZE0.96inch
COLORS1/4 yellow section, 3/4 blue section
VISIBLE ANGLE>160°
OPERATING TEMP. (℃)-20~70
STORAGE TEMP. (℃)-30~80
OPERATING VOLTAGE3.3V / 5V
APPLICABILITYHardware platforms such as Raspberry Pi/Jetson Nano/Arduino/STM32

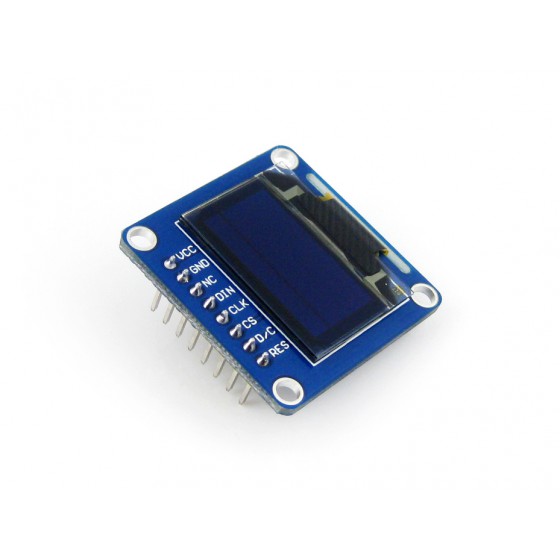

Interface

PIN NO.SYMBOLDESCRIPTION
1VCCPower positive (3.3~5V power input)
2GNDGround
3NCNC
4DINData input
5CLKClock signal input
6CSChip selection, low active
7D/CCommand signal, low level for command, high level for data
8RESReset signal, low active

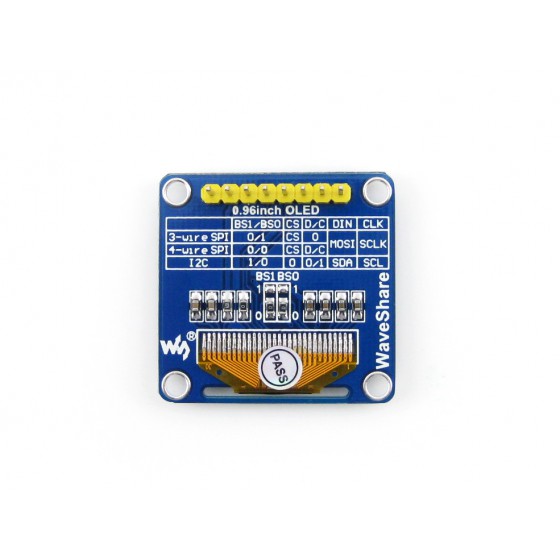

Hardware Config

MODE/INTERFACEBS0/BS1DINSCK
3-wire SPI1/0MOSISCLK
4-wire SPI0/0
I2C0/1SDASCL
