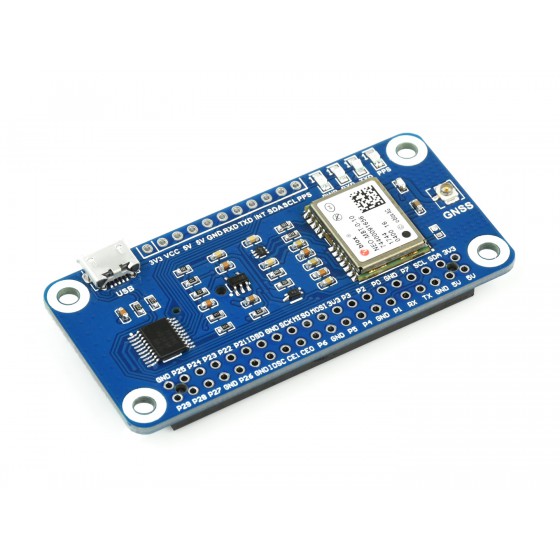

NEO-M8T GNSS TIMING HAT

Model NO.: NEO-M8T GNSS TIMING HAT

Quantity:

Product Description

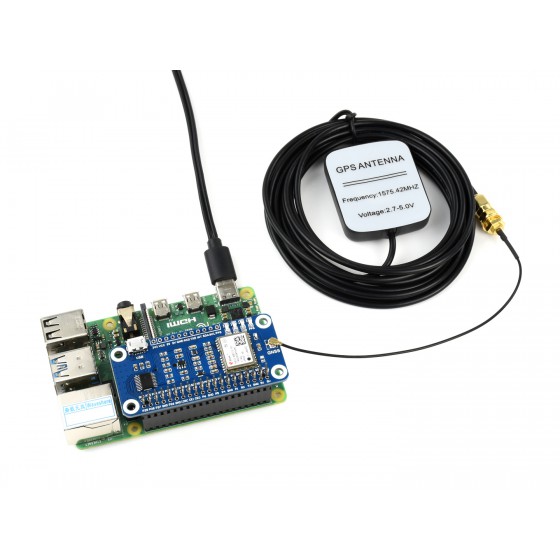

NEO-M8T GNSS TIMING HAT for Raspberry Pi, Single-Satellite Timing, Concurrent Reception of GPS, Beidou, Galileo, GLONASS

OTHER SPECIFICATIONS
Communication interface		USB, UART (4800~921600bps, 9600bps by default), I2C (max 400KHz)
Update rate		1Hz (default), 10Hz (max)
Protocol		NMEA 0183 Version 4.0 (V2.3 or V4.1 selectable), UBX, RTCM 2.3
Power supply		5V
Overall current		<45mA@5V (Continue mode)
Module current		32mA@3V (Continue mode)
Operating temperature		-40℃ ~ 85℃
Dimensions		65mm × 30.5mm
