The Banana Pi BPI-M1 is a business card-sized and low-power single-board computer featuring a high performance AllWinner A20 dual-core SoC at 1 GHz, 1 GB of DDR3 SDRAM, Gigabit Ethernet, SATA, USB, and HDMI connections. It can run a variety of operating systems including Android, Lubuntu, Ubuntu, Debian, and Raspbian.

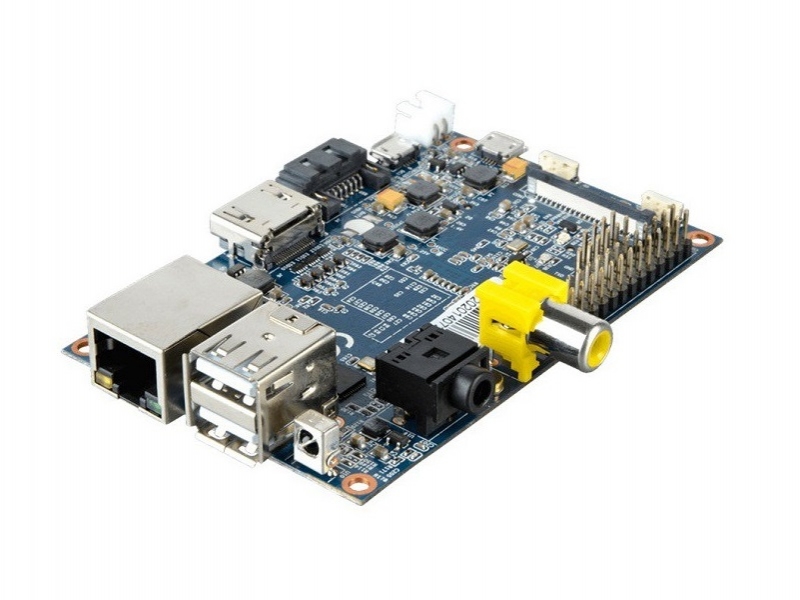

The Banana Pi BPI-M1
It is the first open source hardware launched by the banana pie team, and also a classic product with the largest cumulative sales of banana pie.There are still a lot of business clients that apply to various projects.A20 chip
Banana Pi is an open platform device, it is for anyone who wants to play and build with developer technology instead of simply using consumer technology. Backed by our community, starting a project and building servers is fun and rewarding.

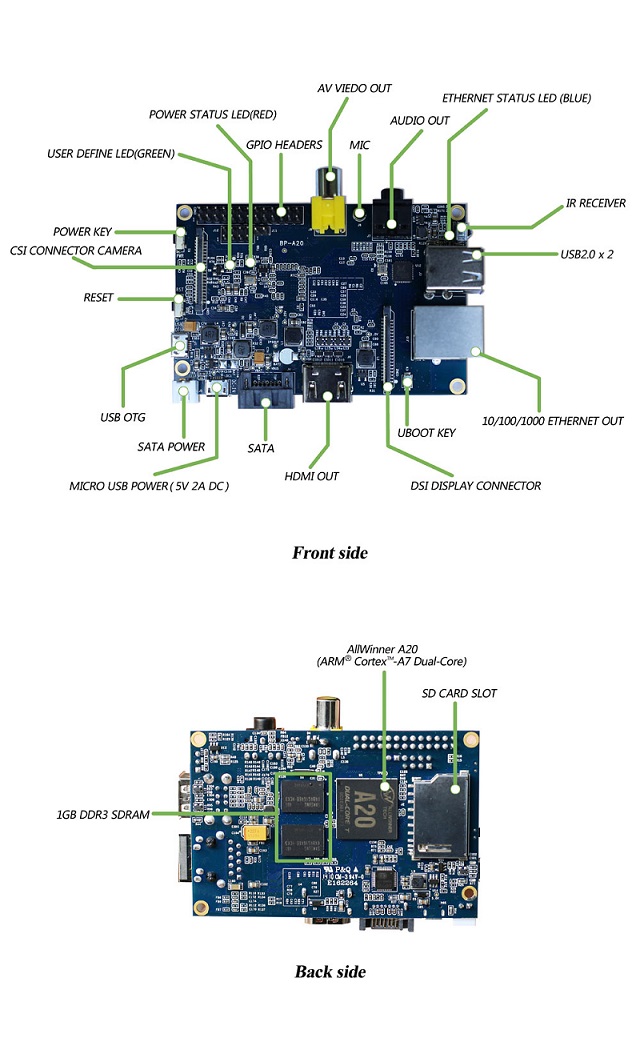

Hardware interface:
Hardware spec：
| Banana Pi BPI-M1 Hardware spec | |||
| CPU | A20 ARM Cortex -A7 Dual-Core (option:allwinner A40i) | ||
| GPU | ARM Mali 400 MP2; Complies with OpenGL ES 2.0/1.1 | ||
| Memory | 1GB DDR3 | ||
| Network | 10/100/1000 Ethernet 8P8C (1000BASE-T) | ||
| Video Input | A CSI input connector allows for the connection of a designed camera module | ||
| Video Outputs | HDMI, CVBS, LVDS/RGB | ||
| Audio Outputs | 3.5mm jack and HDMI | ||
| Power Source | 5 volts DC via Micro USB or GPIO | ||
| USB 2.0 ports | 2 (direct from Allwinner A20 chip) | ||
| GPIO | GPIO, UART, I2C BUS, SPI BUS, WITH TWO CHIP SELECTS, CAN bus, ADC, PWM, +3.3V, +5V, GND | ||
| LED | Power Key & 8P8C | ||
| Storage | SATA 2.0, | ||
