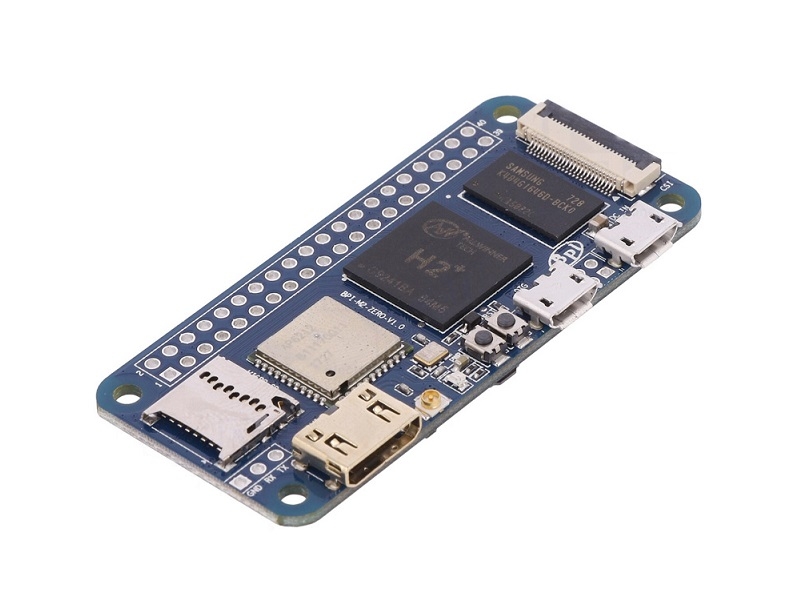

Banana Pi BPI-M2 Zero with Allwinner H3(option H2+/H5)chip design with 512M RAM

Model NO.: Banana Pi BPI-M2 Zero
Minimum order quantity:: 1

Quantity:

Product Description

The Banana Pi M2 Zero is an ultra compact single board computer which measures only 60mm*30mm. Its external interfaces are the same as the Raspberry Pi Zero W, and it will fit almost all cases and accessories for the Zero W. It uses the quad-core Cortex A7 Allwinner H3(option H2+ H5) processor, with 512MB RAM. It‘s ideal for light-weight systems and space-limited applications. Like other members of the Banana Pi family, it supports both Linux and Android operating systems.

Banana Pi M2 Zero: Low-Cost, Quad Core SBC

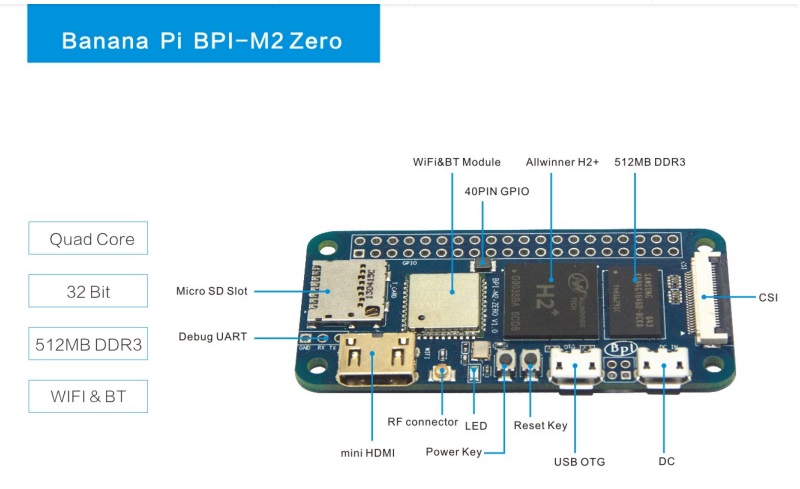

Hardware interface:

Haredware Spec:

HardWare Specification of Banana pi BPI-P2 Zero VS BPI-M2 zero VS Raspberry Pi Zero W
Module	Banana Pi BPI-P2 Zero	Banana Pi BPI-M2 Zero	Raspberry Pi Zero W
CPU	H3 Quad-core Cortex-A7 H265/HEVC 1080P	H3 Quad-core Cortex-A7 H265/HEVC 1080P	Broadcom BCM2835 32 Bit 1 GHz ARM1176JZF-S single-core
GPU	Mali400MP2 GPU @600MHz,Supports OpenGL ES 2.0	Mali400MP2 GPU @600MHz,Supports OpenGL ES 2.0	VideoCore IV
Memory (SDRAM)	512M DDR3(shared with GPU)	512M DDR3(shared with GPU)	512 MB DDR2
Onboard Storage	TF card (Max. 64GB)	TF card (Max. 64GB)	TF card (Max. 64GB)
Onboard Network	100M LAN	NOPE (but can extension with PIN define)	NOPE
PoE power	PoE function support	NOPE	NOPE
Onboard flash	8G eMMC	NOPE	NOPE
Onboard WIFI	SDIO AP6212（option AP6181、AP6335）	SDIO AP6212（option AP6181、AP6335）	802.11n wireless, Bluetooth 4.1
Video decoding	1080p@60fps,H.264 Video encoding 1080p@30fps,H.264	1080p@60fps,H.264 Video encoding 1080p@30fps,H.264	1080p30 H.264/MPEG-4 AVC high-profile decoder and encoder
Video input	A CSI input connector Camera	A CSI input connector Camera	CSI camera connector
Video Outputs	mini HDMI 1.4,1080P@30fps, DHCP	mini HDMI 1.4,1080P@30fps, DHCP	Mini HDMI and USB On-The-Go ports
Audio Output	Mini HDMI	Mini HDMI	Mini HDMI
Power Source	Micro USB with 5V/2A or PoE power	Micro USB with 5V/2A	5V/2A
USB 2.0 Ports	one USB 2.0 OTG	one USB 2.0 OTG	one USB 2.0 OTG
Buttons	Power Button, Reset Button	Power Button, Reset Button	Composite video and reset headers
Low-level peripherals	40 Pins Header,compatible with Raspberry Pi 3	40 Pins Header,compatible with Raspberry Pi 3	40 PIN
uart GPIO(1x3) pin	UART, ground	UART, ground	UART
LED	Power led & Status led	Power led & Status led	Power Status LED
IR	N/A	N/A	N/A
Supported OS	android linux	android linx	Linux
Product size	65mm X 52.5mm	65mm × 30mm	65mm x 30mm
Weight	30g	15g	9g
