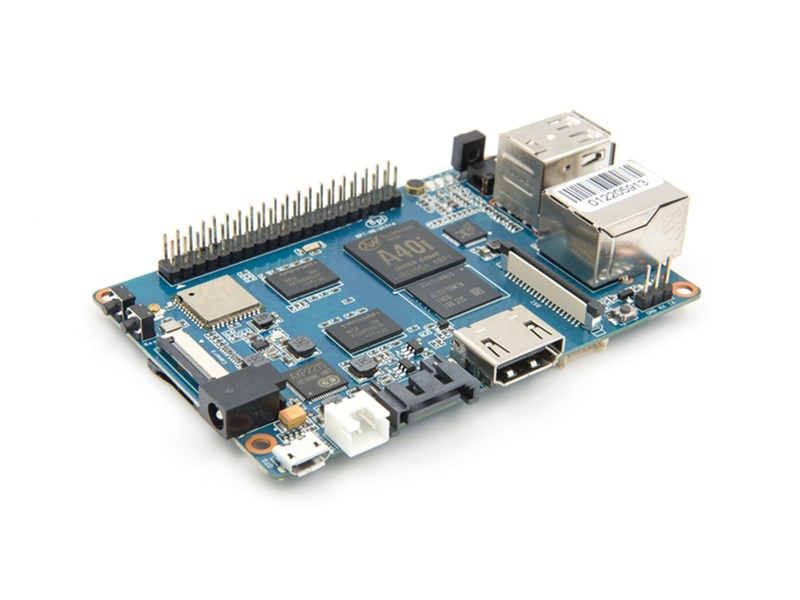

Banana Pi BPI-M2 Ultra with Allwinner A40i/R40/V40 chip design,2G RAM and 8G eMMC
Banana Pi BPI-M2 Ultra with Allwinner A40i/R40/V40 chip design,2G RAM and 8G eMMC

Banana Pi BPI-M2 Ultra with Allwinner A40i/R40/V40 chip design,2G RAM and 8G eMMC

Model NO.
Banana Pi BPI-M2 Ultra
Minimum order quantity:

Banana Pi BPI-M2 Ultra is a quad-core mini single board computer built with Allwinner A40i(option R40/V40) SoC. It features 2GB of RAM and 8GB eMMC. It also has onboard WiFi and BT. On the ports side, the BPI-M2 Ultra has 2 USB A 2.0 ports, 1 USB OTG port, 1 HDMI port, 1 audio jack, a DC power port, and last but not least, a SATA port..
Also being a member of the Banana Pi family, the M2 Ultra is a direct upgrade from the Banana Pi M1/M1+ that support SATA from the SoC. The SATA performance on the A40i is fitting for media related projects such as storage servers. Backed by our community, starting a project and building servers is fun and rewarding. We welcome all companies, DIYers, and tech loving people within our community! Together, we can make a difference, we can discover our passions, inspire others, and build a practical project.

Hardware interface:

Hardware spec:
HardWare Specification of Banana pi BPI-M2 Ultra
SocAllwinner A40I/R40/V40
CPUquad-core cortex -A7,the most power efficient CPU core ARM‘s ever development
GPUdual-core MALI-400 MP2 and runs at 500MHz, capable of 1.1 Gpixel/s throughput. Graphics capabilities are slightly higher than the original Xbox’s level of performance. The GPU provides OpenGL ES 2.0, hardware-accelerated OpenVG, 1080p45 H.264 high-profile encode and decode.
SDRAM2 GB DDR3 with 733MHz(shared with GPU)
SATAsuppoort SATA interface
GPIO40 Pins Header, 28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S.
On board Network10/100/1000Mbps Ethernet (Realtek RTL8211E/D)
Wifi ModuleWiFi 802.11 b/g/n (AP 6212 module on board)
On board StorageMicroSD (TF) card,8GB eMMC onboard
Display4-lane MIPI DSI display,or RGB panel or LVDS panel,TV-out on HDMI V1.4
VideoMulti-format FHD video decoding, including Mpeg1/2, Mpeg4, H.263, H.264, etc H.264 decode up to 1080P60,support video encodeing:High-deinition(HD)H.264 video encoder is up to 1080P@45fps
Audio outputsHDMI, analog audio (via 3.5 mm TRRS jack)
CameraA CSI input connector Camera:Supports 8-bit YUV422 CMOS sensor interface,Supports CCIR656 protocol for NTSC and PAL,Supports 5M pixel camera sensor ,Supports video capture solution up to 1080p@30fps
Audio inputOn board microphone
USB2 USB 2.0 host, 1 USB 2.0 OTG
ButtonsReset button, Power button, U-boot button
LedsPower status Led and RJ45 Led
IRonboard IR receiver
DC Power5V/2A with micro USB port
battery3.7V lithium battery power support
Sizes85mmX56mm,same size as raspberry pi 3
