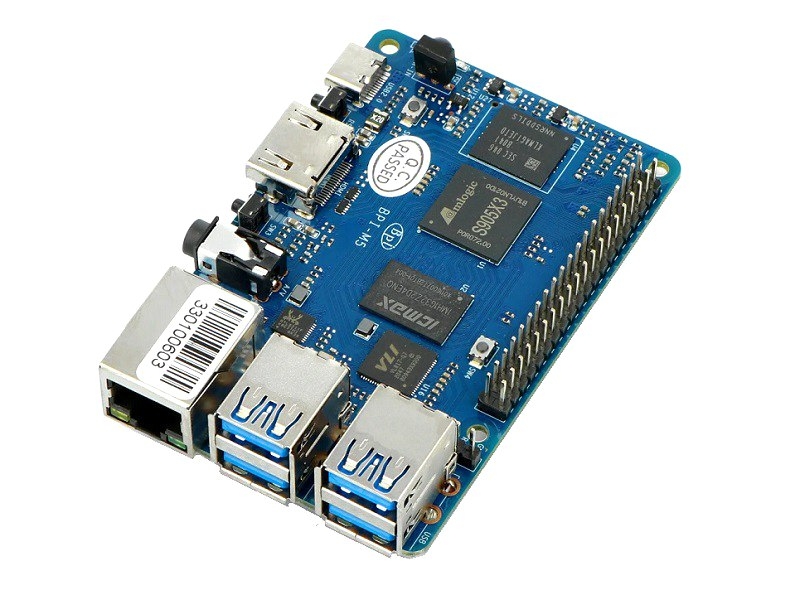

Banana Pi BPI-M5 with Amlogic S905x3 chip design, 4GB RAM and 16GB eMMC

Model NO.: Banana Pi BPI-M5
Minimum order quantity:: 1

Quantity:

Product Description

Banana Pi BPI-M5 is a new generation single board computer design , use Amlogic S905X3 Quad-Core Cortex-A55 (2.0xxGHz) Processor. Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz). BPI-M5 will come with 4GB LPDDR4 RAM, 16GB eMMC flash, and offers four USB 3.0 ports, one Gigabit Ethernet port, and on HDMI 2.1 output port for 4K video output.

BPI-M5 The Next Generation Single Board Computer From Banana Pi:

Hardware interface:

Hardware spec:

HardWare Specification of Banana pi BPI-M5
CPU	Amlogic S905X3 Quad-Core Cortex-A55 (2.0xxGHz)
GPU	Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz)
Memory	4 GB LPDDR4
Storage	MicroSD slot with support for up to 256GB expansion and 16G eMMC flash with support for up to 64GB
Network	10/100/1000 Mbit/s Ethernet ,Optional WiFi USB dongle
Video Output(s)	1 x HDMI 2.0 (up to 4K@60Hz with HDR, CEC, EDID)
Audio Output(s)	3.5mm jack and 1 x HDMI digital output
USB ports	USB 3.0 PORT (x4)
GPIO	40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM
Switches	Reset, Power and U-boot
LED	Power Status and Activity status
Power Source	5 volt @3A via Micro USB (TYPE C)
Size & Weight	92x60mm, 48g
OS	Android and Linux

BPI-M2 Pro VS BPI-M5 VS Odroid C4 VS Raspberry Pi 4
	Banana Pi BPI-M2 Pro	Banana Pi BPI-M5	Odroid C4	Raspberry Pi 4
Processor	Amlogic S905X3 Quad-Core Cortex-A55 ARMv8.2-A 64-bit 1.5GHz	Amlogic S905X3 Quad-Core Cortex-A55 ARMv8.2-A 64-bit 1.5GHz	Amlogic S905X3 Quad-Core Cortex-A55 ARMv8.2-A 64-bit 1.5GHz	Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
GPU	Mali-G31 MP2 GPU	Mali-G31 MP2 GPU	Mali-G31 MP2 GPU	Broadcom VideoCore VI
RAM	2GB LPDDR4	4GB LPDDR4	DDR4 4GiB with 32-bit bus width	2GB, 4GB or 8GB LPDDR4-3200 SDRAM
Storage	micro SD card slot & 16GB eMMC flash on board	micro SD card slot & 16GB eMMC flash on board	micro SD card slot , eMMC connector for option	micro SD card slot, non EMMC
Network	1 GbE ,WiFi&BT5.0 onbard	GbE ,Optional WiFi USB dongle	GbE	GbE, 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE
Video Output	1 x HDMI 2.1 (up to 4K@60Hz with HDR, CEC, EDID)	1 x HDMI 2.1 (up to 4K@60Hz with HDR, CEC, EDID)	1 x HDMI 2.1 (up to 4K@60Hz with HDR, CEC, EDID)	2 × micro-HDMI 2.0
Audio Output	1 x HDMI digital output	3.5mm jack and 1 x HDMI digital output	Optional SPDIF optical output	3.5 mm analogue audio-video jack
DSI	N/A	N/A	N/A	2-lane MIPI DSI display port
CSI	N/A	N/A	N/A	2-lane MIPI CSI camera port
USB	USB 3.0 x 2 1 Micro USB 2.0	USB 3.0 x 4 TYPE C	USB 3.0 x 4, 1 x Micro USB 2.0 port (OTG)	2 USB 3.0 ports; 2 USB 2.0 ports;
Power	5 volt @3A via DC power	5 volt @3A via Micro USB (TYPE C)	1 x DC power jack (Outer diameter : 5.5mm, inner diameter : 2.1mm)	5V DC via USB-C connector (minimum 3A*)
IR	Yes	Yes	Yes	N/A
GPIO	40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND).	40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND).	40 x GPIO pins	40-pin GPIO header, populated
Button	Reset, user and U-boot	Reset, user and U-boot	N/A	N/A
LED	Power Status and Activity status	Power Status and Activity status	Power Status and Activity status	Power Status and Activity status
Dimensions & weight	65mm x 65mm,58g	85mm x 56mm, 48g	85mm x 56mm 59g	88 mm × 58 mm, 46 g
System Support	Linux & Android	Linux & Android	Linux & Android	Linux & Android
